门和反相器

IC GATE OR 1CH 2-INP SC70-5

IC INVERTER SCHMITT TRIG 2CH 6SOT-23

具有三态输出的 8 通道、2V 至 6V 反相器

The device is supplied in an antistatic package. The gate-source input must be protected against static discharge during transport or handling.

Single 2-Input AND Gate

IC PROM SRL 128M GATE 64-FTBGA

BCD to 7-segment latch/decoder/driver

Dual D-type flip-flop

Hex inverting Schmitt trigger

Single 2-Input NAND Gate

The NC7SZU04 is a single unbuffered inverter from onsemi's Ultra High Speed Series of TinyLogic®. The special purpose unbuffered circuit design is primarily intended for crystal oscillator or analog applications. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad V CC operating range. The device is specified to operate over the 1.65V to 5.5V V CC range. Product services, tools and other useful resources related to NC7SZU04A Find and compare products, get support and connect with onsemi sales team.

Single Bit Dual Power Supply Translating Buffer with 3 State Outputs

The SN74LVC7266A contains four independent 2-input XNOR gates. Each gate performs the Boolean function Y = A ⊕ B in positive logic.

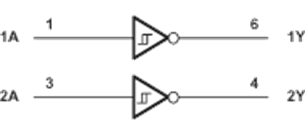

This dual Schmitt-trigger inverter is designed for 1.65-V to 5.5-V V CC operation. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. The SN74LVC2G14 device contains two inverters and performs the Boolean function Y = A . The device functions as two independent inverters, but because of Schmitt action, it may have different input threshold levels for positive-going (V T+ ) and negative-going (V T– ) signals. This device is fully specified for partial-power-down applications using I off . The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. For all available packages, see the orderable addendum at the end of the data sheet.

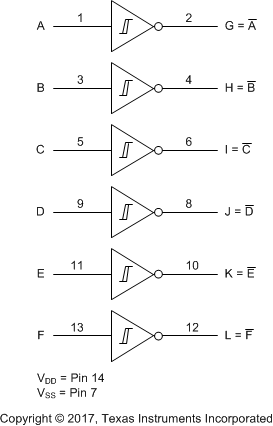

The CD40106B device consists of six Schmitt-Trigger inputs. Each circuit functions as an inverter with Schmitt-Trigger input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage (V P ) and the negative-going voltages (V N ) is defined as hysteresis voltage (V H ). The CD40106B device is supplied in ceramic packaging (J) as well as standard packaging (D, N, NS, PW). All CD40106B devices are rated for –55°C to +125°C ambient temperature operation.
