搜索结果：OP200

EMITTER IR 880NM 50MA 0805

The OP200 is the first monolithic dual operational amplifier to offer OP77 type precision performance. Available in the industry standard 8-lead pinout, the OP200 combines precision performance with the space and cost savings offered by a dual amplifier. The OP200 features an extremely low input offset voltage of less than 75 μV with a drift below 0.5 μV/°C, guaranteed over the full military temperature range. Open-loop gain of the OP200 exceeds 5,000,000 into a 10 kΩ load; input bias current is under 2 nA; CMRR is over 120 dB; and PSRR is below 1.8 μV/V. On-chip Zener zap trimming is used to achieve the extremely low input offset voltage of the OP200 and eliminates the need for offset pulling. Power consumption of the OP200 is low, with each amplifier drawing less than 725 μA of supply current. The total current drawn by the dual OP200 is less than one-half that of a single OP07, yet the OP200 offers significant improvements over this industry-standard op amp. The voltage noise density of the OP200, 11 nV/√Hz at 1 kHz, is half that of most competitive devices. The OP200 is an ideal choice for applications requiring multiple precision op amps and where low power consumption is critical. For a quad precision op amp, see the OP400 .

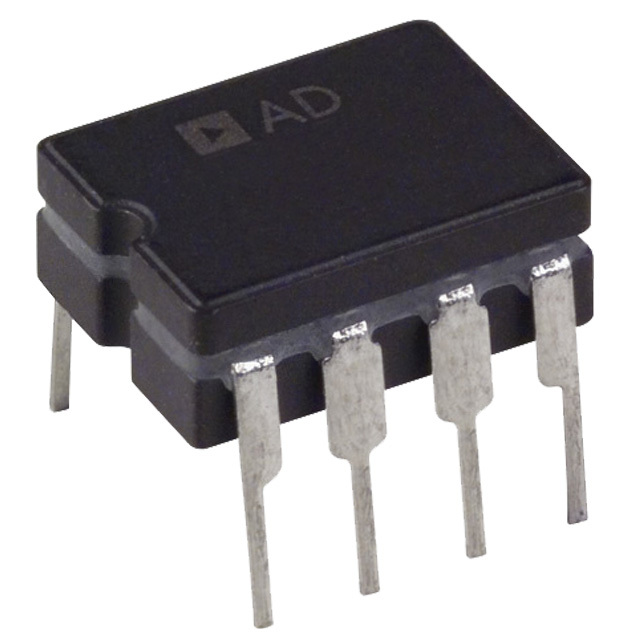

IC OPAMP GP 2 CIRCUIT 8CERDIP

IC OPAMP GP 500KHZ DUAL LP 8DIP

The OP200 is the first monolithic dual operational amplifier to offer OP77 type precision performance. Available in the industry standard 8-pin pinout, the OP200 combines precision performance with the space and cost savings offered by a dual amplifier. The OP200 features an extremely low input offset voltage of less than 75µV with a drift below 0.5µV/°C, guaranteed over the full military temperature range. Open-loop gain of the OP-200 exceeds 5,000,000 into a 10k Ohm load; input bias current is under 2nA; CMR is over 120dB and PSRR below 1.8µV/V. On-chip zener-zap trimming is used to achieve the extremely low input offset voltage of the OP200 and eliminates the need for offset nulling. The total current drawn by the dual OP200 is less than one-half that of a single OP07, yet the OP200 offers significant improvements over this industry standard op amp. The voltage noise density of the OP200, 11nV/(root)Hz at 1kHz, is half that of most competitive devices. The OP200 is an ideal choice for applications requiring multiple precision op amps and where low power consumption is critical.

IC OPAMP GP 2 CIRCUIT 8CERDIP

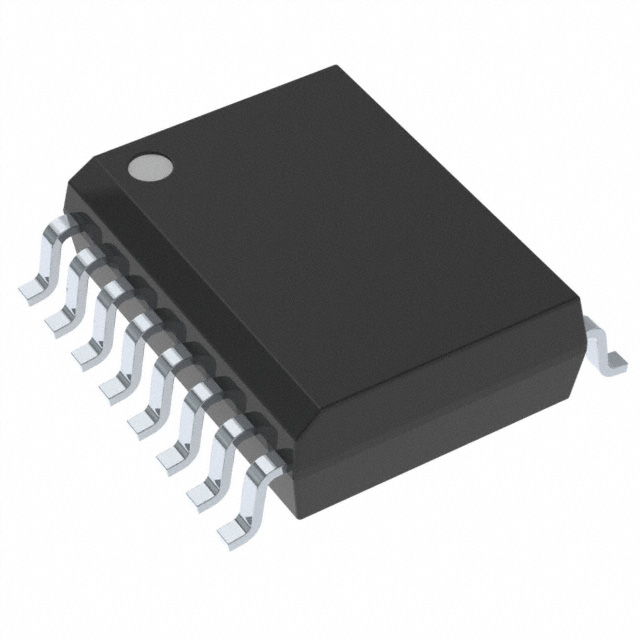

IC OPAMP GP 2 CIRCUIT 16SOIC

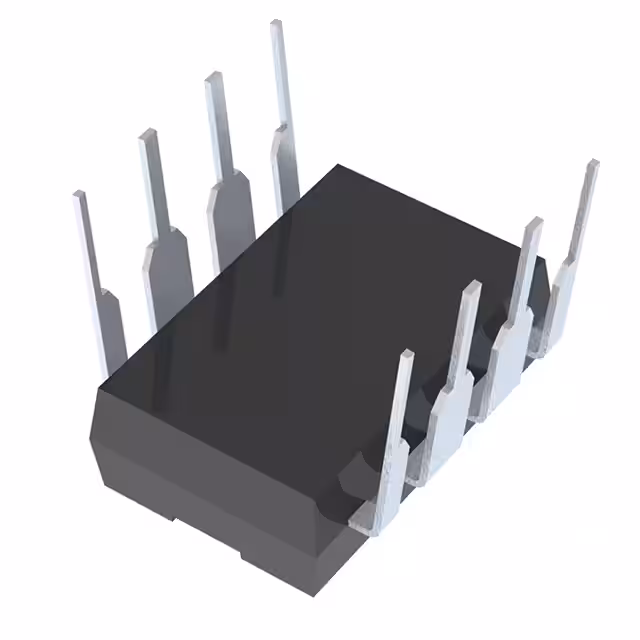

IC OPAMP GP 2 CIRCUIT 8DIP

IC OPAMP GP 2 CIRCUIT 16SOIC

TERM BLOCK HDR 20POS VERT 5MM

TERM BLOCK HDR 20POS 90DEG 5MM

IC OPAMP GP 2 CIRCUIT 16SOIC
