TE ConnectivitySwitzerland

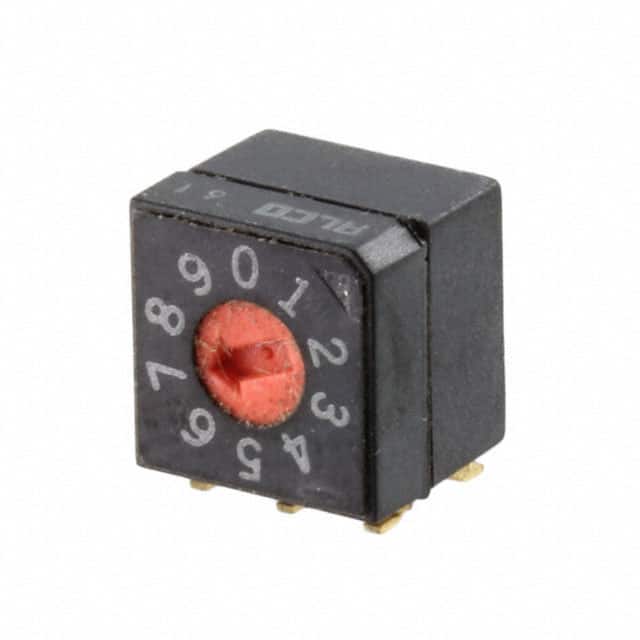

SW ROTARY DIP BCD COMP 0.4VA 20V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.4VA |
| Voltage Rating | 20VAC/DC |
| Environment and package | |
| Height Above Board | 0.295" (7.50mm) |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -30°C~85°C |
| Package | Tube |
| Other | |
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Base Product Number | 1825013 |
| Body Material | Polyphenylene Sulfide (PPS) |
| Circuit | BCD Complement |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Electrical Life | 10,000 Steps |
| Features | Process Sealed |
| Length | 0.276" (7.00mm) |
| Mechanical Life | 20,000 Steps |
| Mfr | TE Connectivity ALCOSWITCH Switches |
| Number of Positions | 10 |
| Pitch | 0.100" (2.54mm), Full |
| Product Status | Obsolete |
| Series | MRD |
| Termination Style | Gull Wing |
| Washable | No |
