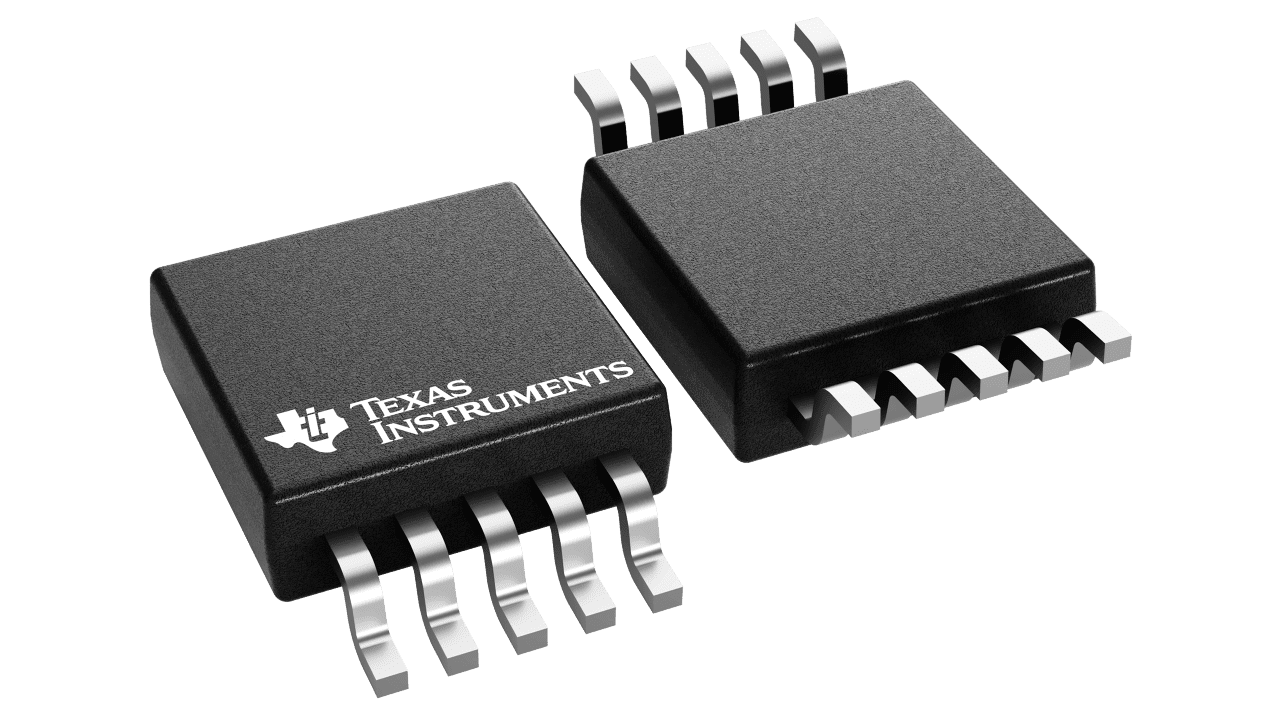

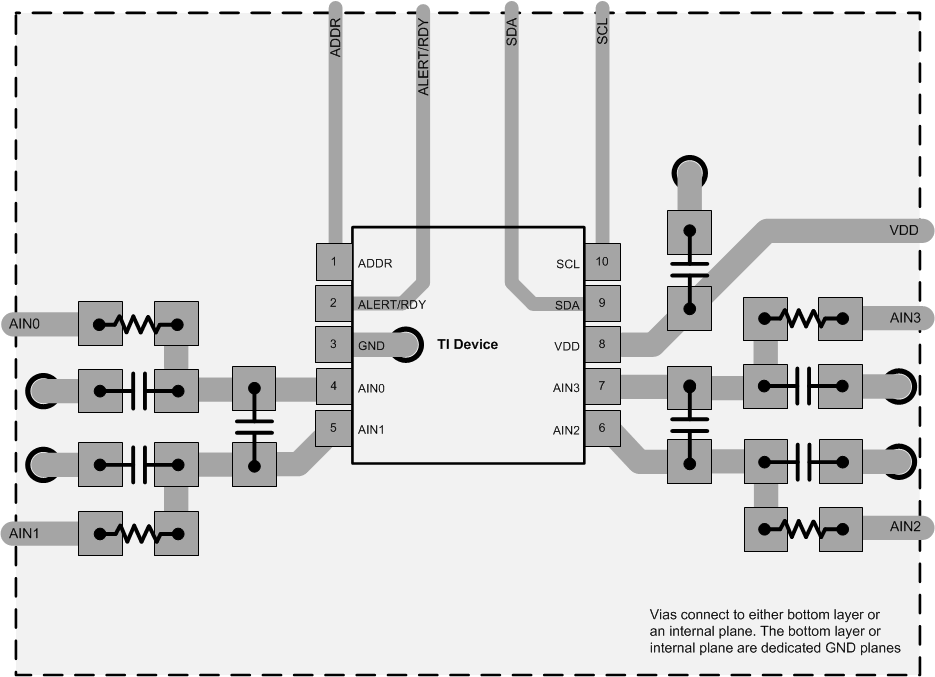

The ADS1114L and ADS1115L (ADS111xL) are precision, low-power, 16-bit, I2C-compatible, analog-to-digital converters (ADCs) offered in ultra-small, 12-pin DSBGA and a 10-pin VSSOP packages. The ADS111xL incorporate a low-drift voltage reference and an oscillator. The ADS111xL also incorporate a programmable gain amplifier (PGA) and a digital comparator. These features, along with the device wide operating supply range, are useful for power- and space-constrained, sensor measurement applications. The ADS111xL perform conversions at data rates up to 860 samples per second (SPS). The PGA offers input ranges from ±256 mV to ±6.144 V, allowing precise large- and small-signal measurements. The ADS1115L features an input multiplexer (MUX) that allows two differential or four single-ended input measurements. Use the digital comparator in the ADS111xL for under- and overvoltage detection.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Analog supply voltage (max) (V) | 3.6 |
| Analog supply voltage (min) (V) | 2 |
| Digital supply (max) (V) | 3.6 |
| Digital supply (min) (V) | 2 |
| Input voltage range (max) (V) | 3.6 |
| Input voltage range (min) (V) | 0 |
| Multichannel configuration | Multiplexed |
| Number of input channels | 4 |
| Power consumption (typ) (mW) | 0.3 |
| AC and DC characteristics | |
| Resolution (Bits) | 16 |
| Environment and package | |
| Operating temperature range (°C) | -40 to 125 |
| Other | |
| Architecture | Delta-Sigma |
| Features | Comparator, Oscillator, PGA |
| Input type | Differential, Single-ended |
| Interface type | I2C |
| Rating | Catalog |
| Reference mode | Internal |
| Sample rate (max) (ksps) | 0.86 |
