STMicroelectronicsSwitzerland
TRIAC ALTERNISTOR 600V TO220AB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 35 mA |
| Current - Hold (Ih) (Max) | 35 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 160A, 168A |
| Current - On State (It (RMS)) (Max) | 16 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Voltage - Off State | 600 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~125°C(TJ) |
| Package | Tube |

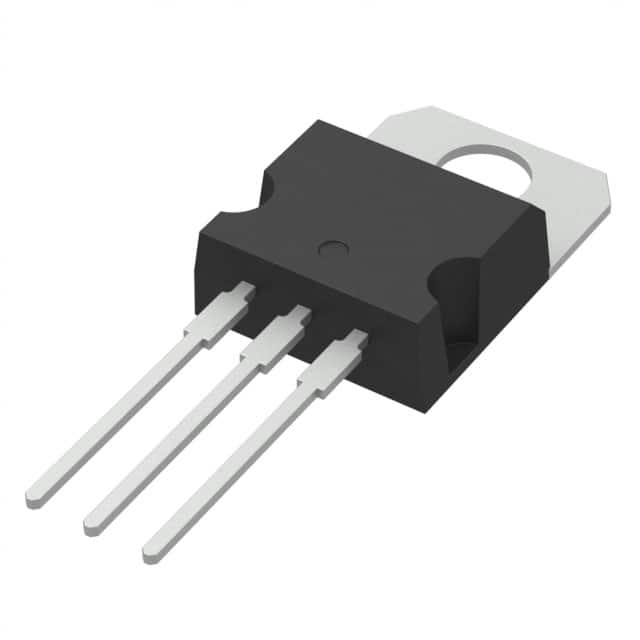

| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Other | |
| Base Product Number | BTA16 |
| Configuration | Single |
| Mfr | STMicroelectronics |
| Product Status | Active |
| Series | Snubberless™ |
| Triac Type | Alternistor - Snubberless |
