Focus LCDsUnited States

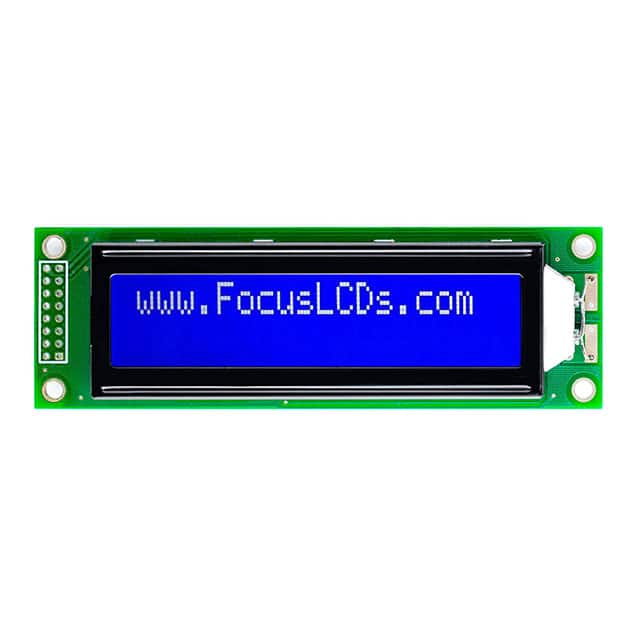

20X2 STN BLUE CHARACTER LCD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 5V |
| Environment and package | |
| Character Size | 5.55mm H x 3.20mm W |
| Dot Size | 0.65mm W x 0.60mm H |
| Operating Temperature | -20°C~70°C |
| Package | Box |
| Other | |
| Background Color | Blue |
| Backlight | LED - White |
| Character Format | 5 x 7 Dots |
| Controller Type | ST7066U |
| Display Format | 20 x 2 |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Interface | Parallel |
| Mfr | Focus LCDs |
| Number of Characters | 40 |
| Outline L x W x H | 116.00mm x 37.00mm x 13.50mm |
| Product Status | Not For New Designs |
| Series | C202A |
| Text Color | White |
| Viewing Area | 83.00mm L x 18.60mm W |
Documents
No documents are linked to this part yet.
