Coto TechnologyUnited States

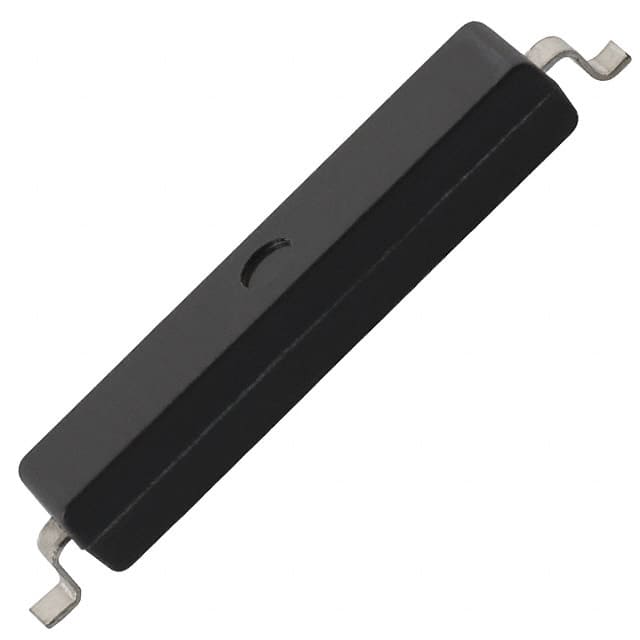

SWITCH REED SPST-NO 500MA 200V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Carry | 1.5A (AC/DC) |
| Current - Switching | 500mA (AC/DC) |
| Power - Rated | 10VA |
| Voltage - Switching AC | 200 V |
| Voltage - Switching DC | 200 V |
| Environment and package | |
| Height Above Board | 0.115" (2.92mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |

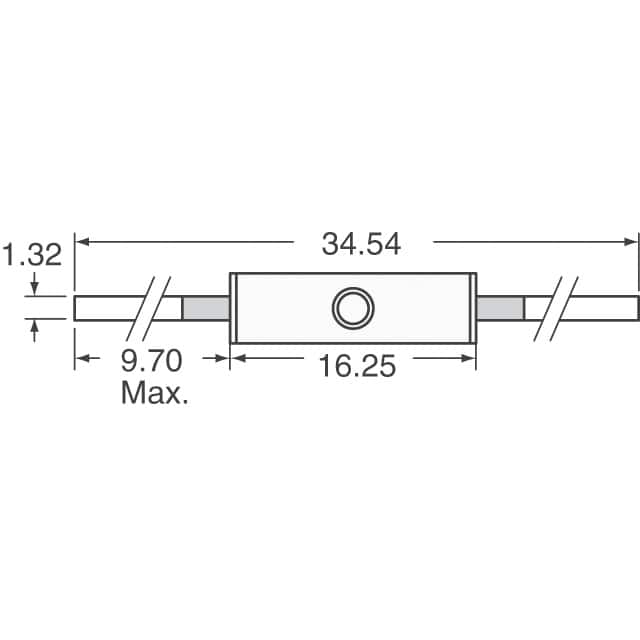

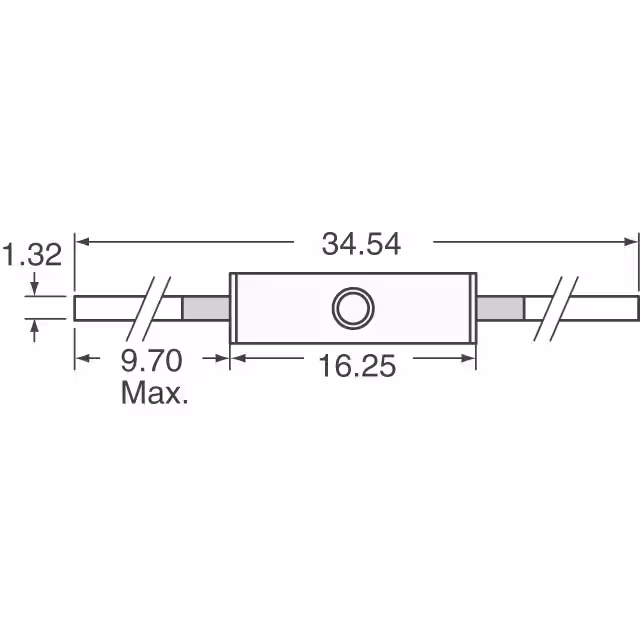

| Size - Body | 0.640" L x 0.150" W x 0.106" H (16.25mm x 3.80mm x 2.70mm) |
| Other | |
| Capacitance | 0.3 pF |
| Circuit | SPST-NO |
| Length - Overall | 0.800" (20.32mm) |
| Mfr | Coto Technology |
| Operate Range | 15 ~ 20AT |
| Operate Time | 0.5 ms |
| Product Status | Obsolete |
| Release Range | - |
| Release Time | 0.2 ms |
| Series | CM15 |
| Termination Style | Gull Wing |
| Type | Molded Body Reed |
