CreeLED, Inc.United States

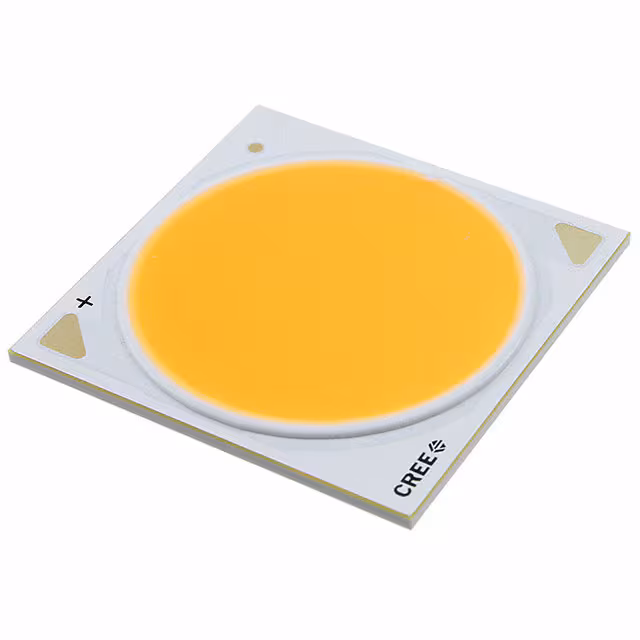

LED COB CXA3590 NEUTRAL WHITE SQ
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 1.8A |
| Current - Test | 1.2A |
| Lumens/Watt @ Current - Test | 95 lm/W |
| Voltage - Forward (Vf) (Typ) | 77V |
| Environment and package | |
| Height | 1.70mm |
| Luminous Flux @ Current/Temperature | 8750lm(8500lm~9000lm) |
| Package | Tray |
| Size / Dimension | 34.85mm L x 34.85mm W |
| Temperature - Test | 85°C |
| Other | |
| Base Product Number | CXA3590 |
| CCT (K) | 4000K 4-Step MacAdam Ellipse |
| Color | White, Neutral |
| Configuration | Square |
| CRI (Color Rendering Index) | 90 |
| Features | - |
| Lens Type | Flat |
| Light Emitting Surface (LES) | 30.00mm Dia |
| Mfr | CreeLED, Inc. |
| Product Status | Obsolete |
| Series | XLamp® CXA3590 |
| Type | Chip On Board (COB) |
| Viewing Angle | 115° |
| Wavelength | - |
