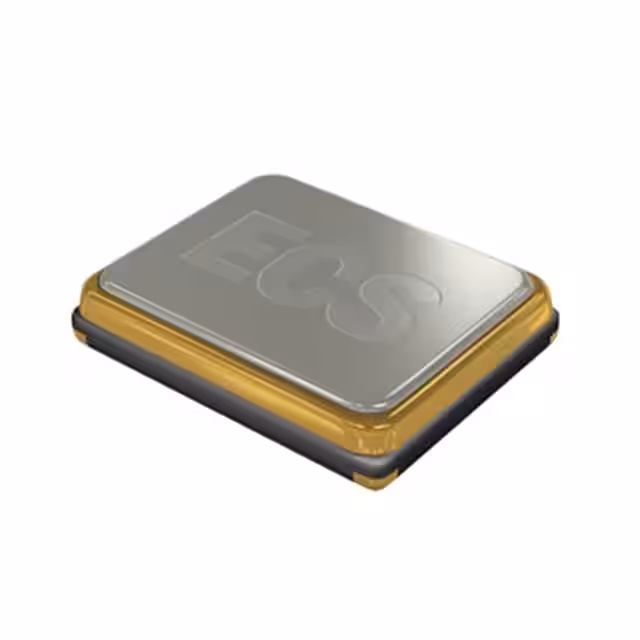

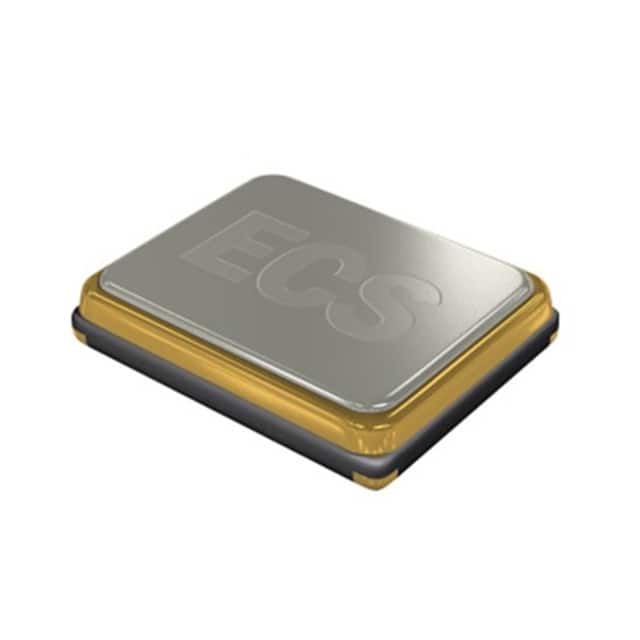

ECS-480-8-33B-CWN-TR
ECS Inc.United States

ECS-480-8-33B-CWN-TR

ActiveCrystals

CRYSTAL 48.0000MHZ 8PF SMD

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Frequency48 MHz
Frequency tolerance10 ppm
Load capacitance8 pF
ESR40 ΩMax
AC and DC characteristics
Frequency48 MHz
Frequency Stability±15ppm
Frequency Tolerance±10ppm
Environment and package
Height - Seated (Max)0.031" (0.80mm)
Mounting TypeSurface Mount
Operating Temperature-40°C~85°C
PackageTape & Reel (TR); Cut Tape (CT); Digi-Reel®
Package / Case4-SMD, No Lead
Size / Dimension0.126" L x 0.098" W (3.20mm x 2.50mm)
Other
ESR (Equivalent Series Resistance)40 Ohms
Load Capacitance8pF
MfrECS Inc.
Operating ModeFundamental
Product StatusActive
Ratings-
SeriesECS-33B
TypeMHz Crystal
