Infineon TechnologiesGermany

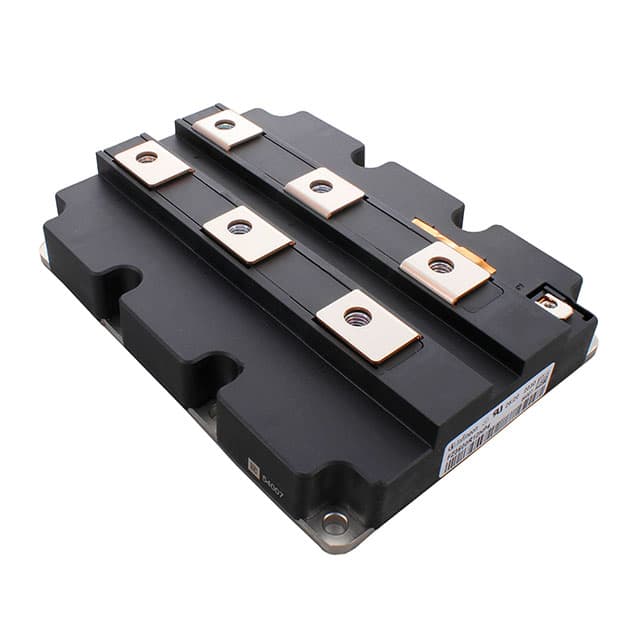

IGBT MODULE 1200V 4930A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 5 mA |
| Current - Collector (Ic) (Max) | 4930 A |
| Power - Max | 19000 W |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~150°C |
| Package | Tray |
| Package / Case | Module |
| Supplier Device Package | Module |
| Other | |
| Base Product Number | FZ3600 |
| Configuration | Single Switch |
| IGBT Type | Trench |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 225 nF @ 25 V |
| Mfr | Infineon Technologies |
| NTC Thermistor | No |
| Product Status | Active |
| Series | IHM-B |
| Vce(on) (Max) @ Vge, Ic | 2.05V @ 15V, 3600A |
