Rohm SemiconductorJapan
TRANS 2NPN 20V 0.5A 6SMT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 500nA (ICBO) |
| Current - Collector (Ic) (Max) | 500mA |
| Power - Max | 300mW |
| Voltage - Collector Emitter Breakdown (Max) | 20V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 560 @ 10mA, 3V |
| Frequency - Transition | 350MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

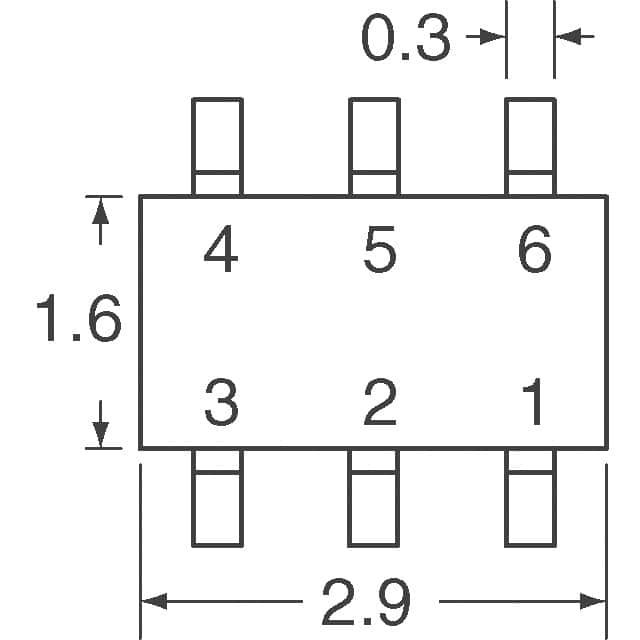

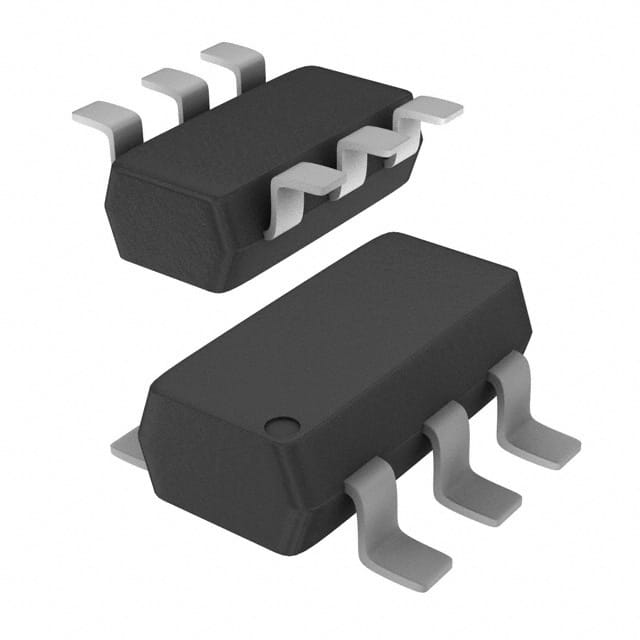

| Package / Case | SC-74, SOT-457 |
| Supplier Device Package | SMT6 |
| Other | |
| Base Product Number | IMX9T110 |
| Mfr | Rohm Semiconductor |
| Product Status | Not For New Designs |
| Series | - |
| Transistor Type | 2 NPN (Dual) |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 20mA, 500mA |
Documents
No documents are linked to this part yet.
