CreeLED, Inc.United States

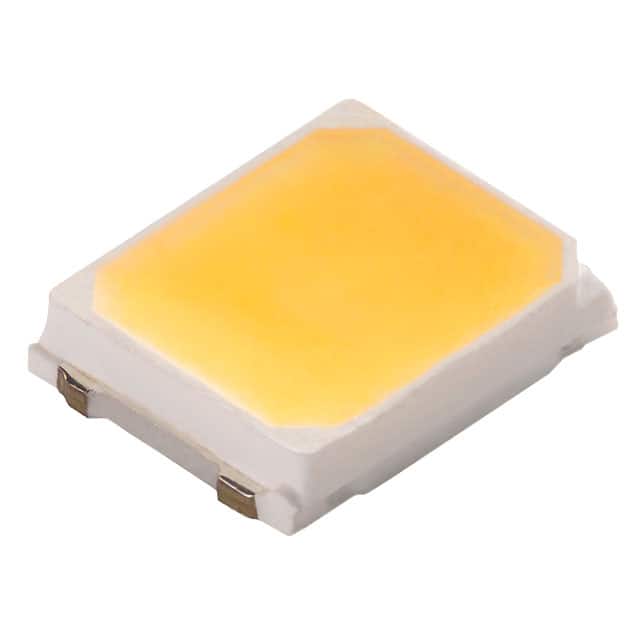

CREE J SERIES JE2835 LIGHT EMITT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 240mA |
| Current - Test | 150mA |
| Flux @ 25°C, Current - Test | 70lm (Typ) |
| Flux @ 85°C, Current - Test | - |
| Lumens/Watt @ Current - Test | 156 lm/W |
| Voltage - Forward (Vf) (Typ) | 3V |
| Environment and package | |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 1113 (2835 Metric) |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Supplier Device Package | SMD |
| Thermal Resistance of Package | 20°C/W |
| Other | |
| Base Product Number | JE2835AWT |
| CCT (K) | 3000K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 80 |
| Mfr | CreeLED, Inc. |
| Product Status | Obsolete |
| Series | J |
| Viewing Angle | 120° |
