Nexperia USA Inc.Netherlands
TRAN NPN/PNP 60V 870/770MA 6TSOP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA |
| Current - Collector (Ic) (Max) | 870mA, 770mA |
| Power - Max | 420mW |
| Voltage - Collector Emitter Breakdown (Max) | 60V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 5V / 150 @ 500mA, 5V |
| Frequency - Transition | 220MHz, 185MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

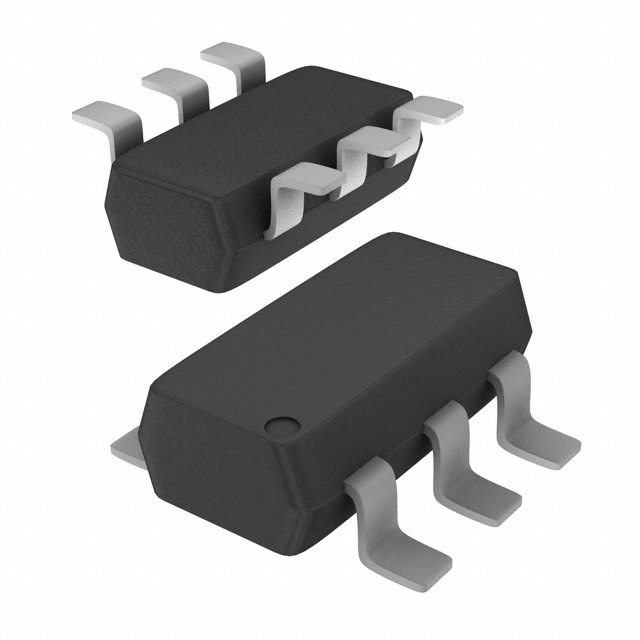

| Package / Case | SC-74, SOT-457 |

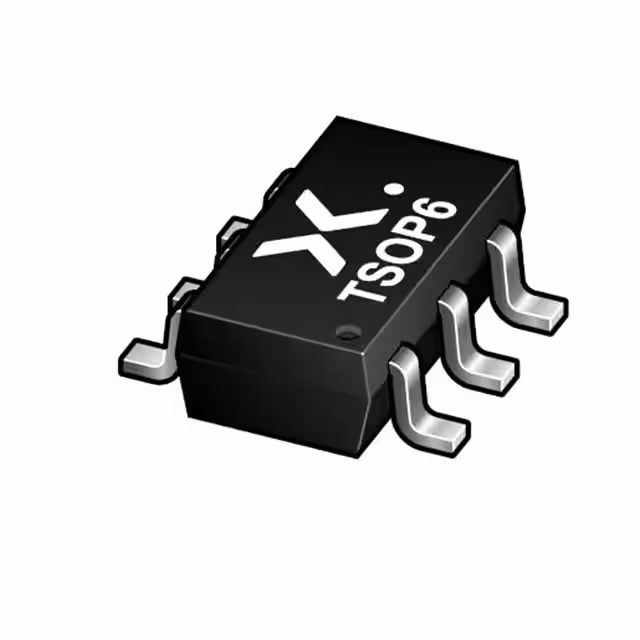

| Supplier Device Package | 6-TSOP |
| Other | |
| Base Product Number | PBSS4160 |
| Mfr | Nexperia USA Inc. |
| Product Status | Active |
| Series | Automotive, AEC-Q100 |
| Transistor Type | NPN, PNP |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 100mA, 1A, 330mV @ 100mA, 1A |
