Nexperia USA Inc.Netherlands

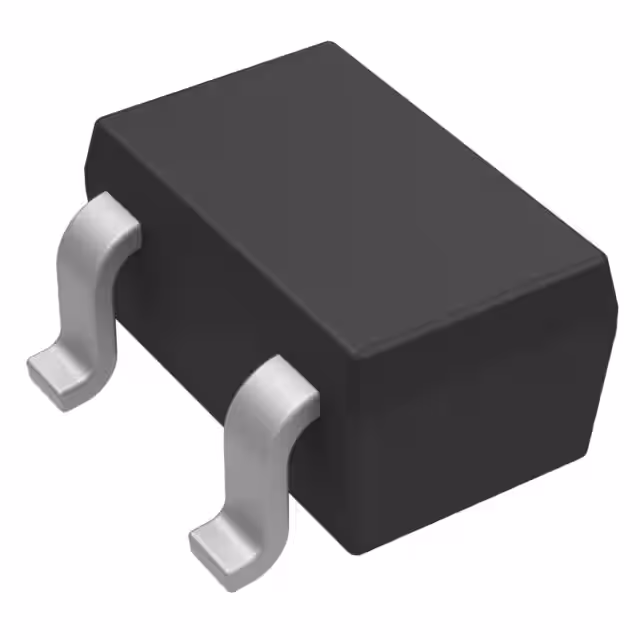

TRANS PREBIAS NPN 50V SOT323
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 1µA |
| Current - Collector (Ic) (Max) | 100 mA |
| Power - Max | 200 mW |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 1mA, 5V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 |
| Other | |
| Base Product Number | PDTC143 |
| Mfr | Nexperia USA Inc. |
| Product Status | Active |
| Resistor - Base (R1) | 4.7 kOhms |
| Series | Automotive, AEC-Q100 |
| Transistor Type | NPN - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 250µA, 5mA |
