View full reportTechnical parameters
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 20mA |
| Current - Output / Channel | 25 mA |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.65V |
| Voltage - Isolation | 2500Vrms |
| Voltage - Supply | 4.5V ~ 5.5V |
| AC and DC characteristics | |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 20ns, 5ns |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |

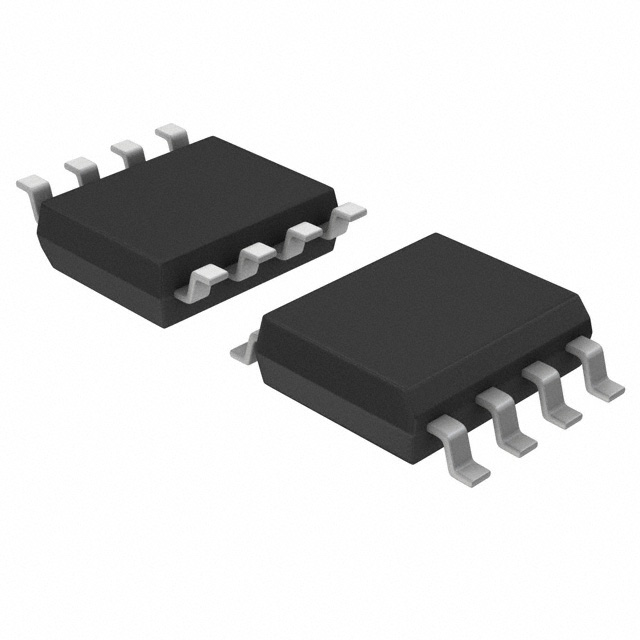

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SSOP |
| Other | |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Data Rate | 10Mbps |
| Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC |
| Manufacturer | CEL |
| Output Type | Open Collector |
| Packaging | Bulk |
| Part Status | Obsolete |
| Series | - |
