Infineon TechnologiesGermany
IGBT 1200V 6.2A 62W TO263-3
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 6.2 A |
| Current - Collector Pulsed (Icm) | 9.6 A |
| Power - Max | 62 W |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

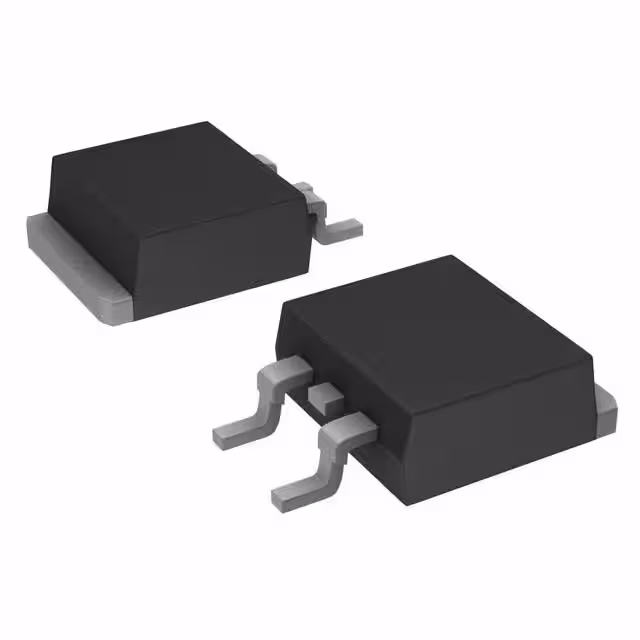

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | PG-TO263-3-2 |
| Other | |
| Base Product Number | SGB02N |
| Gate Charge | 11 nC |
| IGBT Type | NPT |
| Input Type | Standard |
| Mfr | Infineon Technologies |
| Product Status | Last Time Buy |
| Series | - |
| Switching Energy | 220µJ |
| Td (on/off) @ 25°C | 23ns/260ns |
| Test Condition | 800V, 2A, 91Ohm, 15V |
| Vce(on) (Max) @ Vge, Ic | 3.6V @ 15V, 2A |
