IC MIXER DBL BAL 0.4-24GHZ QFN

The MM1-1886HCH-2 is a compact, passive double-balanced MMIC mixer engineered for wideband performance. It features excellent 8.5 dB conversion loss, superior isolations, and spurious performance across a broad 18 to 86 GHz RF/LO bandwidth. Low LO drive requirement allows operation at as low as +13 dBm inputs. The MM1-1886H is available as a wire bondable chip or a connectorized package.

The EVB-MBAL-0620S is a connectorized evaluation board for the MBAL-0620SMG, 6 - 20 GHz MMIC Isolation Balun.

MM1-1467L is a GaAs MMIC double balanced mixer with a broad IF bandwidth and low conversion loss. This mixer ideal for applications which require broad IF bandwidths with operation at mmWave frequencies. The MM1-1467L is available as both wire bondable die and as connectorized modules. The -1 option for die is available for this mixer. Both the -1 and -2 mixers are electrically identically but with mirrored footprints.

The ATN04-00110CH is part of a family of precision GaAs MMIC fixed attenuators. The ATN04-00110CH provides a nominal 4dB attenuation over a DC-110GHz operating range. These attenuators are an ideal solution for attenuating a signal and they can be used in a wide range of applications. They are ideal for test equipment’s protection and signal overload prevention in various RF systems. A 50-ohm match is maintained over the entire operating frequency range. ATN-110CH-KIT is an evaluation kit with 5 units of each value between 0dB to 10dB.

2-Way Wilkinson power dividers can be used for both in-phase power splitting and power combining applications. These power dividers feature the lowest insertion loss (ideally 3 dB splitting loss), excellent amplitude and phase balance, and high isolation across the entire operating band. High isolation can be critically important for power combining applications, such as when performing accurate intermodulation distortion (IMD) tests.

WR-28 45-Degree Waveguide E-Plane Bend, operating from 26.5-40 GHz, are built with high precision and gold plated for high corrosion resistance. They have very low loss and excellent VSWR. Manufactured to rigid specifications, these transmission line components provide minimum detrimental effects on overall system VSWR.

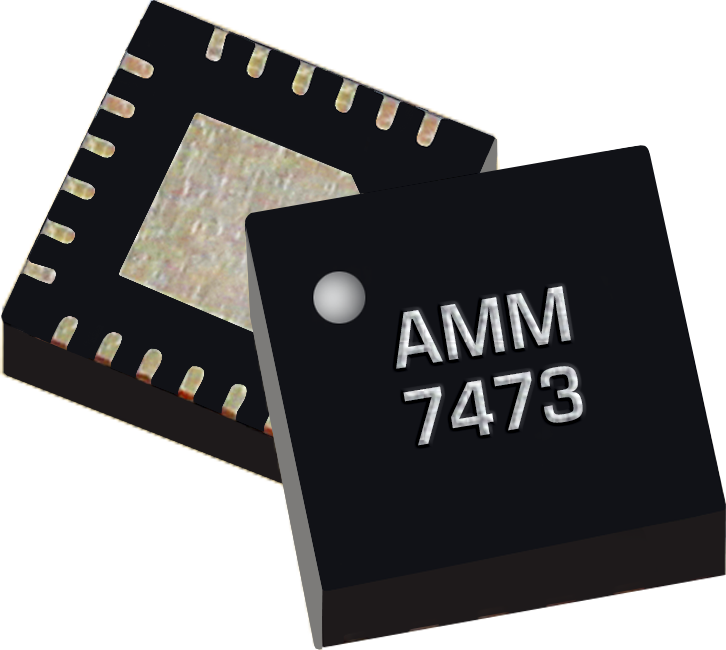

The EVB-AMM-10859P is a connectorized evaluation board for the AMM-10859PSM 4-45 GHz surface mount amplifier.

The EVB-MFBC-00011P is a connectorized evaluation board for the MFBC-00011PSM passive MMIC surface mount 16.15 – 20.70 GHz bandpass filter.

The ATN06-0067CH is part of a family of precision GaAs MMIC fixed attenuators. The ATN06-0067CH provides a nominal 6dB attenuation over a DC-67GHz operating range. These attenuators are an ideal solution for attenuating a signal and they can be used in a wide range of applications. They are ideal for test equipment’s protection and signal overload prevention in various RF systems. A 50-ohm match is maintained over the entire operating frequency range. ATN-67CH-KIT is an evaluation kit with 5 units of each value between 0dB to 10dB.

The MEQ3-30A is a passive MMIC equalizer. It is a positive gain slope equalizer designed to pass DC to 30GHz. Equalization can be applied to reduce low pass filtering effects in both RF/microwave and high speed digital systems. Passive GaAs MMIC technology allows production of smaller equalizer constructions that replace larger form factor circuit board constructions. Better IC tolerances allow for less unit to unit variation than circuit board technologies.

The EVB-MFBP-00140 is a connectorized evaluation board for the MFBP-00140CSP3 passive MMIC surface mount 18 - 22.4 GHz bandpass filter.
