搜索结果：AD537

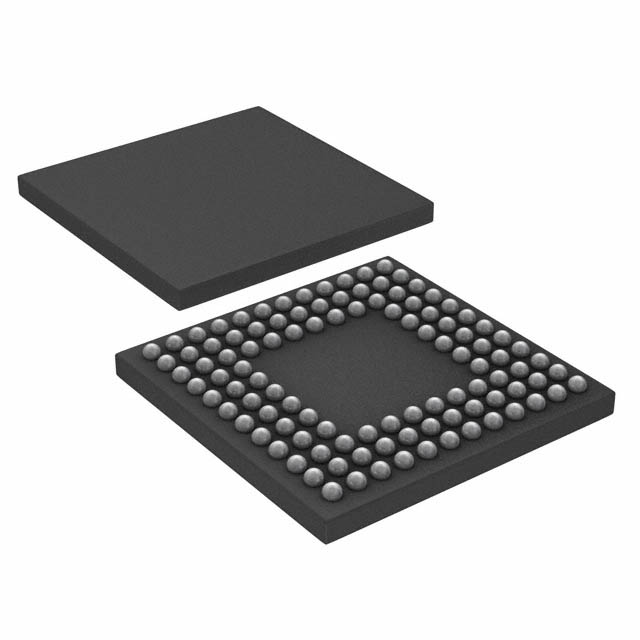

IC DAC 14BIT V-OUT 108CSPBGA

IC DAC 14BIT V-OUT 108CSPBGA

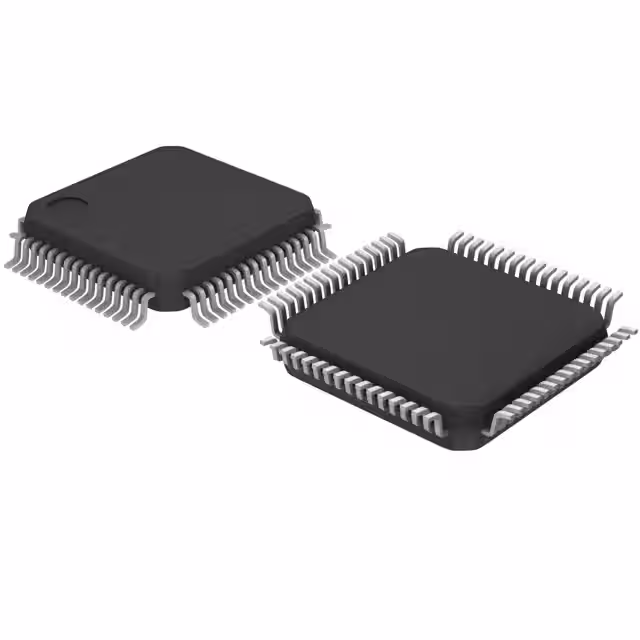

IC DAC 16BIT V-OUT 64LQFP

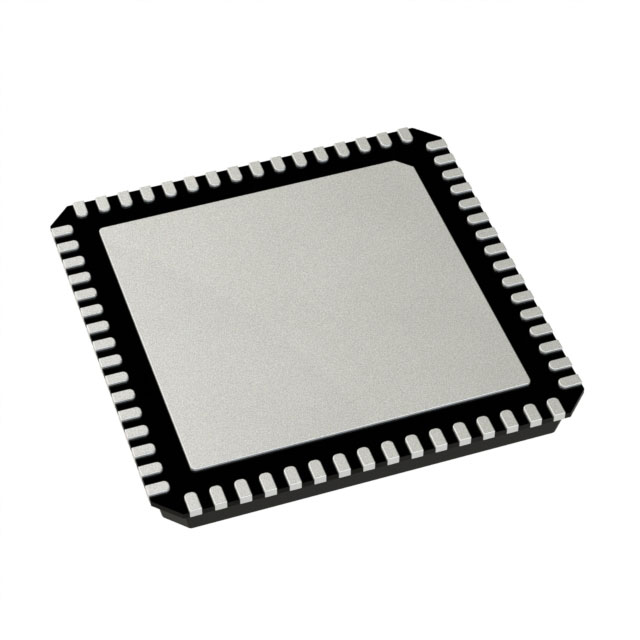

IC DAC 16BIT V-OUT 56LFCSP

IC DAC 14BIT V-OUT 100CSBGA

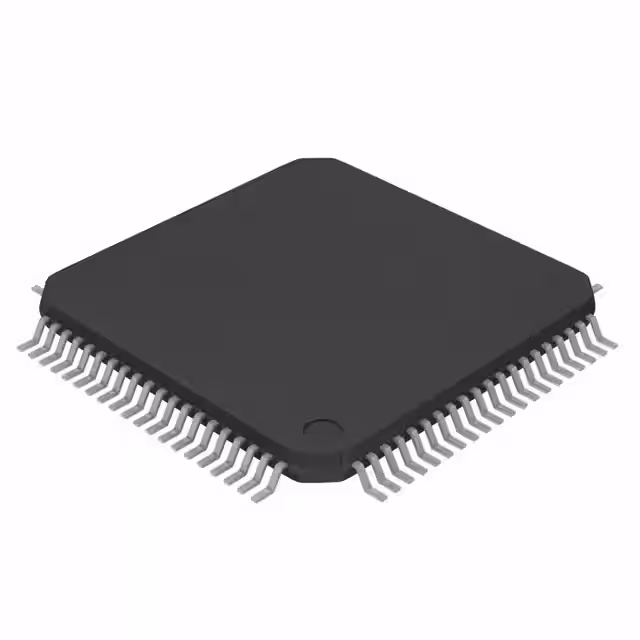

IC DAC 14BIT V-OUT 80LQFP

The AD537S is a monolithic V-F converter consisting of an input amplifier, a precision oscillator system, an accurate internal reference generator and a high current output stage. Only a single external RC network is required to set up any full-scale (F.S.) frequency up to 100 kHz and any F.S. input voltage up to ±30 V. Linearity error is as low as ±0.05% for 10 kHz F.S., and operation is guaranteed over an 80 dB dynamic range. The overall temperature coefficient (excluding the effects of external components) is typically ±30 ppm/°C. The AD537 operates from a single supply of 5 V to 36 V. A temperature-proportional output, scaled to 1.00 mV/K, enables the circuit to be used as a reliable temperature-to-frequency converter; in combination with the fixed reference output of 1.00 V, offset scales such as 0°C or 0°F can be generated. The low drift input amplifier allows operation directly from small signals (e.g., thermocouples or strain gages) while offering a high input resistance. Unlike most V-F converters, the AD537 provides a square-wave output, and can drive up to 12 TTL loads, LEDs, very long cables, etc. The excellent temperature characteristics and long-term stability of the AD537 are guaranteed by the primary bandgap reference generator and the low T.C. silicon chromium thin film resistors used throughout.

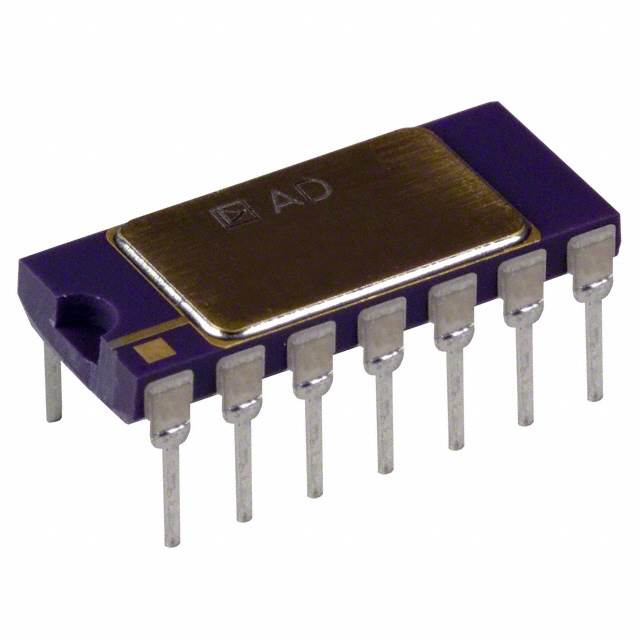

IC V/F CONV 100KHZ 14CDIP

IC V/F CONV 100KHZ TO100-10

IC V/F CONV 100KHZ 14CDIP

IC V/F CONV 100KHZ TO100-10

IC V/F CONV 100KHZ 14CDIP

IC V/F CONV 100KHZ TO100-10
