MolexUnited States

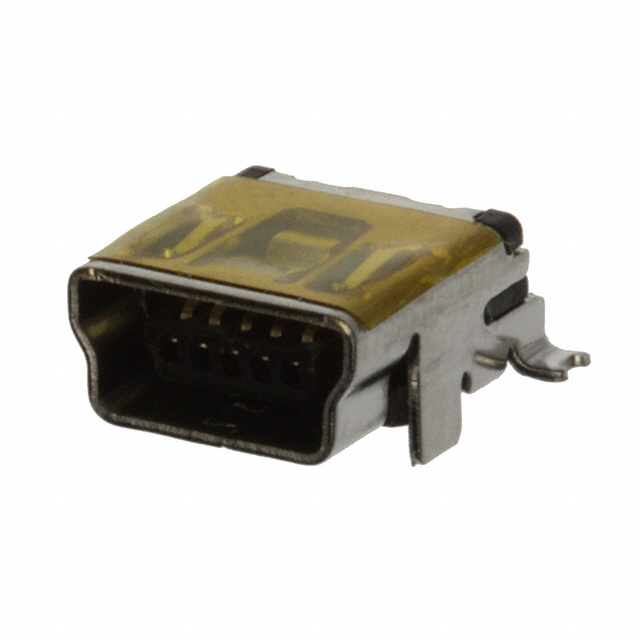

CONN RCPT USB2.0 MINI B SMD R/A
All alternatives
View full reportTechnical parameters
Key specs
Positions5
GenderFemale
Current rating1.8 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1A, 1.8A |
| Voltage - Rated | 100VAC/DC |
| Environment and package | |
| Mounting Feature | Horizontal |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Operating Temperature | -20°C ~ 85°C |
| Package | Tape & Reel (TR) |
| Other | |
| Base Product Number | 047153 |
| Connector Type | USB - mini B |
| Contact Finish | Gold |
| Features | Solder Retention |
| Gender | Receptacle |
| Ingress Protection | - |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | - |
| Mfr | Molex |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Product Status | Obsolete |
| Series | 47153 |
| Shell/Shielding Material | Steel, Stainless |
| Shielding | Shielded |
| Specifications | USB 2.0 OTG |
| Termination | Solder |
Documents
No documents are linked to this part yet.
