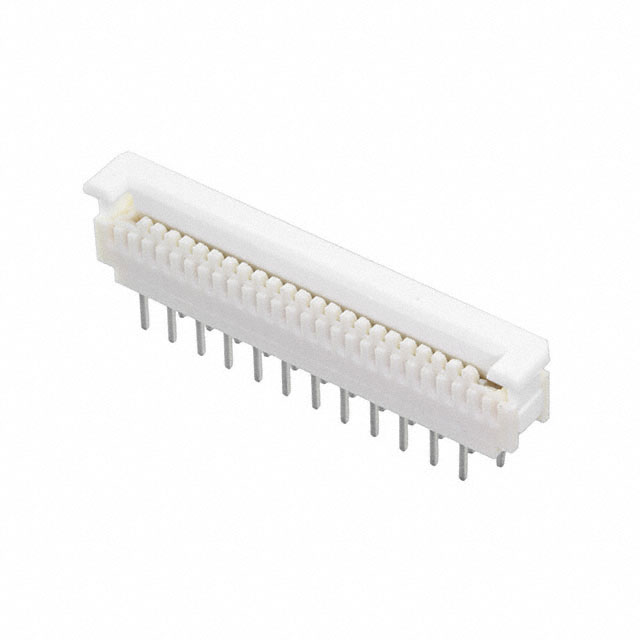

CONN FPC VERT 24POS 1MM PCB
All alternatives
View full reportTechnical parameters
Key specs
Positions24
Pitch1 mm
Current rating1 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1A |
| Voltage Rating | 50V |
| Environment and package | |
| Height Above Board | 0.205" (5.20mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 80°C |
| Other | |
| Actuator Color | - |
| Actuator Material | Polyester |
| Base Product Number | 052030 |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish | Tin Bismuth |
| Contact Finish Thickness | - |
| Contact Material | Phosphor Bronze |
| Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm |
| Flat Flex Type | FPC |
| Housing Color | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Locking Feature | Slide Lock |
| Manufacturer | Molex |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | - |
| Number of Positions | 24 |
| Packaging | Tray |
| Part Status | Obsolete |
| Pitch | 0.039" (1.00mm) |
| Series | 52030 |
| Termination | Kinked Pin |
