MolexUnited States

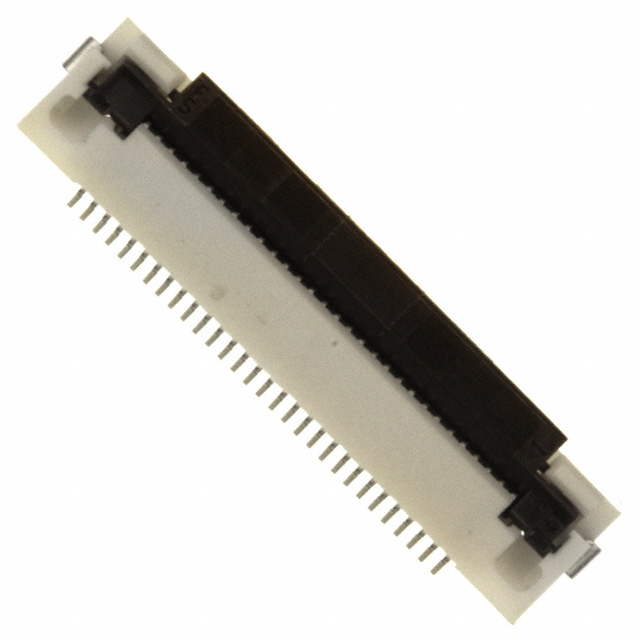

CONN FFC BOTTOM 30POS 0.5MM R/A
All alternatives
View full reportTechnical parameters
Key specs
Positions30
Pitch500 µm
Current rating500 mAMax
| Power | |
|---|---|
| Current Rating (Amps) | 0.5A |
| Voltage Rating | 50V |
| Environment and package | |
| Height Above Board | 0.079" (2.00mm) |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -25°C ~ 85°C |
| Other | |
| Actuator Color | - |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Base Product Number | 052892 |
| Cable End Type | Straight, Tapered |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin Bismuth |
| Contact Finish Thickness | - |
| Contact Material | Phosphor Bronze |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm |
| Flat Flex Type | FFC, FPC |
| Housing Color | - |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Locking Feature | Flip Lock |
| Manufacturer | Molex |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Number of Positions | 30 |
| Packaging | Bulk |
| Part Status | Obsolete |
| Pitch | 0.020" (0.50mm) |
| Series | Easy-On 52892 |
| Termination | Solder |
