Mill-Max Manufacturing Corp.United States

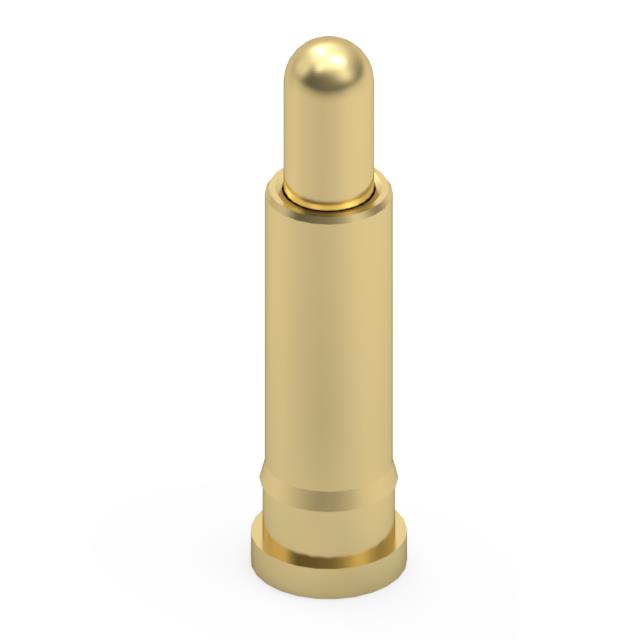

CONTACT SPRING LOADED SMD GOLD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 5.2A |
| Environment and package | |
| Maximum Working Height | 0.275" (6.99mm) |
| Minimum Working Height | 0.220" (5.60mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Package | Bulk |
| Pad Layout Dimension | Circular - 0.072" (1.83mm) |
| Plunger Size | 0.042" (1.07mm) Dia |
| Recommended Working Height | 0.248" (6.29mm) |
| Other | |
| Base Product Number | 0907-1 |
| Contact Finish | Gold |
| Contact Finish Thickness | 20.0µin (0.51µm) |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Features | - |
| Material Flammability Rating | - |
| Mating Cycles | 1000000 |
| Mfr | Mill-Max Manufacturing Corp. |
| Operating Force - Initial | 10gf |
| Operating Force - Mid Compression | 60gf |
| Product Status | Active |
| Series | 907 |
