STMicroelectronicsSwitzerland

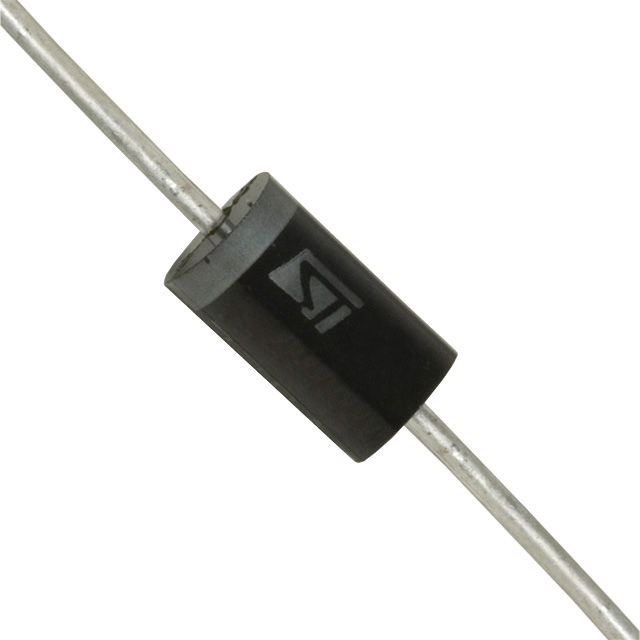

TVS D5.4X7.5 376V 1500W BIDIR
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage376 V
Breakdown voltage418 V
Clamping voltage776 VMax
Peak pulse power1.5 kW
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 13A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | 1500W (1.5kW) |
| Voltage - Breakdown (Min) | 418V |
| Voltage - Clamping (Max) @ Ipp | 776V |
| Voltage - Reverse Standoff (Typ) | 376V |
| AC and DC characteristics | |
| Capacitance @ Frequency | 180pF @ 1MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Cut Tape (CT) Tape & Box (TB) |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
| Other | |
| Applications | General Purpose |
| Base Product Number | 1.5KE440 |
| Mfr | STMicroelectronics |
| Product Status | Active |
| Series | 1.5KE, TRANSIL™ |
| Type | Zener |
