Diotec SemiconductorGermany

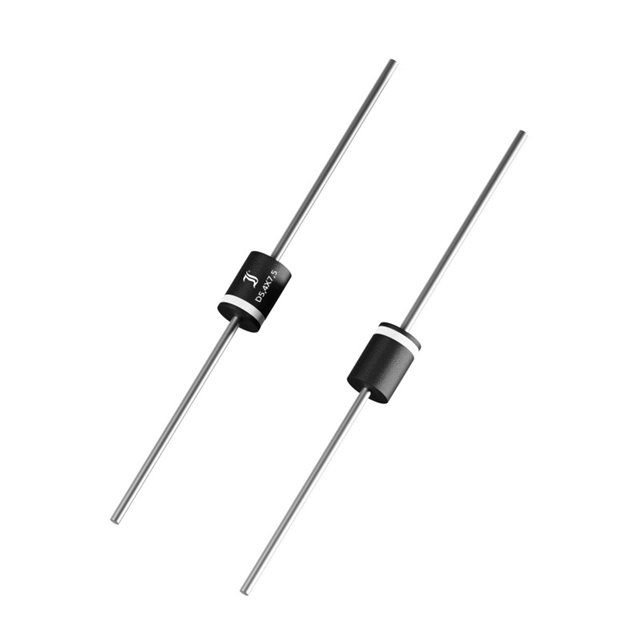

TVS, 376V, 1500W Bi
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage376 V
Breakdown voltage418 V
Clamping voltage602 VMax
Peak pulse power1.5 kW
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 2.6A |
| Power Line Protection | No |
| Power - Peak Pulse | 1500W (1.5kW) |
| Voltage - Breakdown (Min) | 418V |
| Voltage - Clamping (Max) @ Ipp | 602V |
| Voltage - Reverse Standoff (Typ) | 376V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -50°C ~ 175°C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | Axial |
| Supplier Device Package | Axial |
| Other | |
| Applications | General Purpose |
| Base Product Number | 1.5KE |
| Mfr | Diotec Semiconductor |
| Product Status | Active |
| Series | - |
| Type | Zener |
