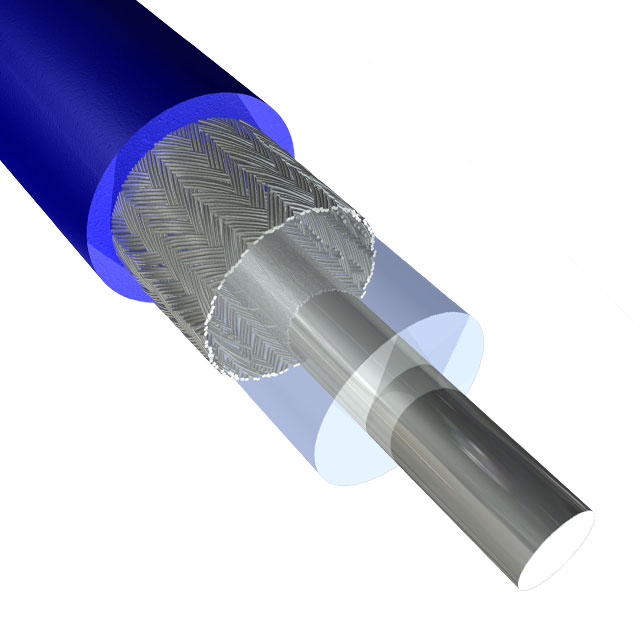

CABLE COAXIAL 24AWG 1'
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Impedance | 50 Ohms |
| Environment and package | |
| Operating Temperature | -65°C ~ 150°C |
| Package | Spool |
| Other | |
| Base Product Number | 100067 |
| Cable Group | - |
| Cable Type | Coaxial |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand | - |
| Dielectric Diameter | 0.065" (1.65mm) |
| Dielectric Material | Fluorinated Ethylene-Propylene (FEP®) |
| Features | - |
| Jacket Color | Blue |
| Jacket (Insulation) Diameter | 0.101" (2.57mm) |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Length | 1.0' (0.30m) |
| Mfr | Molex - Temp Flex |
| Product Status | Active |
| Series | Temp-Flex 100067 |
| Shield Coverage | 100%, 90% |
| Shield Material | Copper, Silver Coated |
| Shield Type | Foil, Braid |
| Usage | - |
| VoP, Velocity of Propagation | 70 |
| Wire Gauge | 24 AWG |
