Integrated Power DesignsUnited States

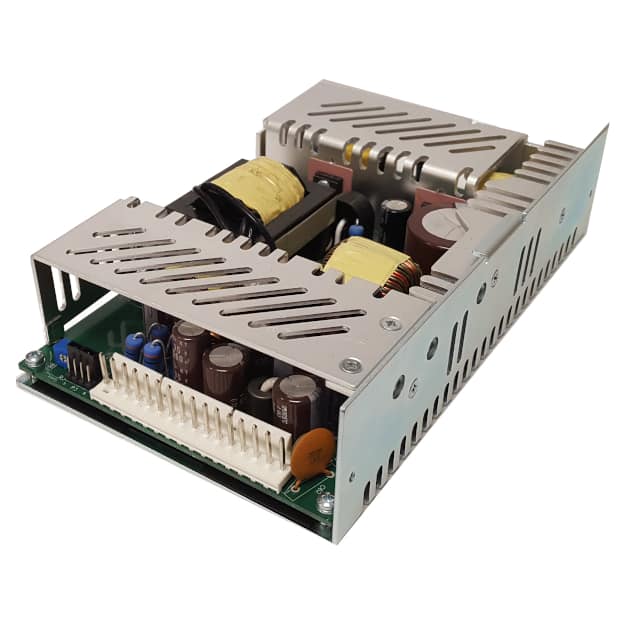

DC/DC CONVERTER 5V +/-15V 185W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage36 ~ 72 V
Output voltage5 V
Output current20 AMax
Power185 WMax
| Power | |
|---|---|
| Current - Output (Max) | 20A, 4A, 3A |
| Power (Watts) | 185W |
| Voltage - Input (Max) | 72V |
| Voltage - Input (Min) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | -15V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) |
| Other | |
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, cURus, TUV, UKCA |
| Base Product Number | 1010728 |
| Efficiency | 84% |
| Mfr | Integrated Power Designs |
| Number of Outputs | 3 |
| Product Status | Active |
| Series | DC4-185 (185W) |
| Standard Number | 60601-1; 62368-1 |
| Type | Chassis |
