Integrated Power DesignsUnited States

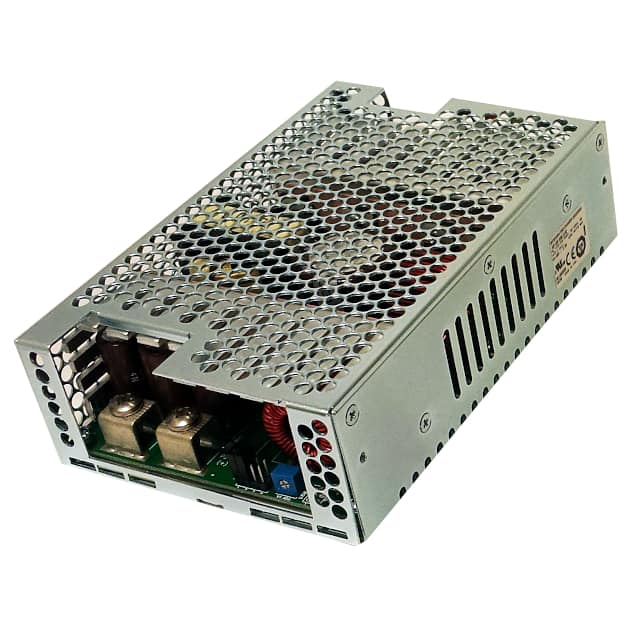

AC/DC CONVERTER 3.3V 325W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage100 ~ 240 V
Output voltage3.3 V
Output current65 AMax
Power325 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 65 A |
| Power (Watts) | 325W |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 6.20" L x 4.00" W x 1.75" H (157.5mm x 101.6mm x 44.5mm) |
| Other | |
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, cURus, TUV, UKCA |
| Base Product Number | 1011003 |
| Efficiency | 85% |
| Features | Adjustable Output, Remote Sense, Universal Input |
| Mfr | Integrated Power Designs |
| Minimum Load Required | - |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | NXT-325 (350W) |
| Standard Number | 60601-1; 62368-1 |
| Type | Enclosed |
