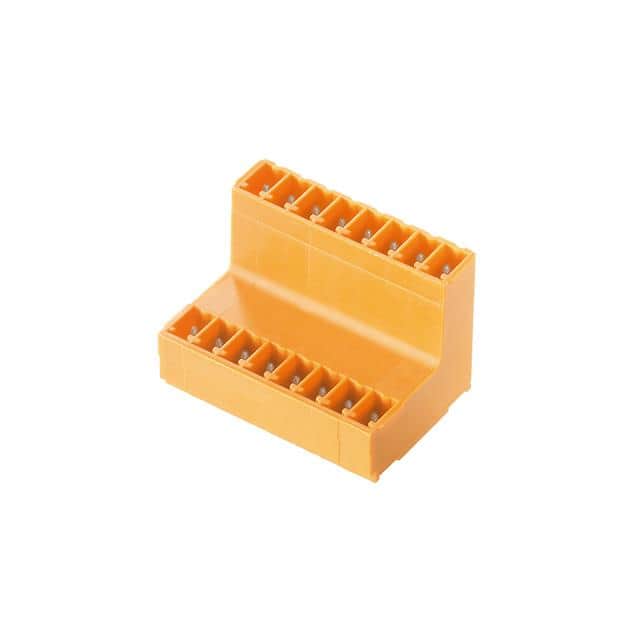

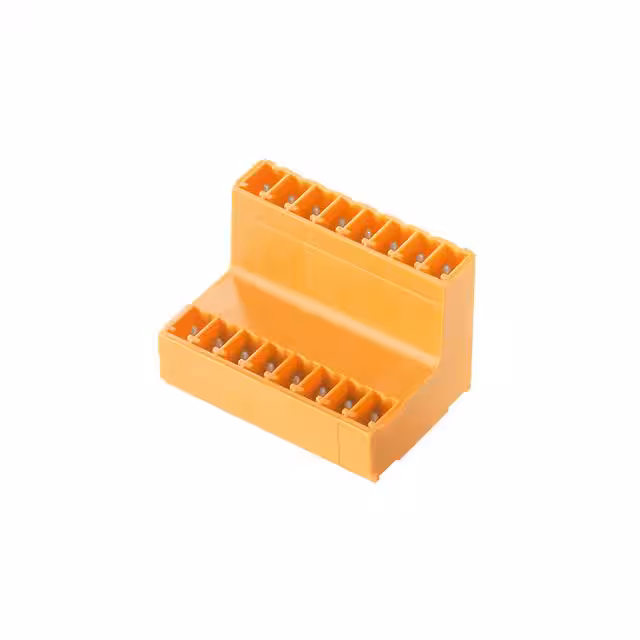

TERM BLOCK HDR 22POS VERT 3.81MM
All alternatives
View full reportTechnical parameters
Key specs
Positions22
Pitch3.81 mm
| Power | |
|---|---|
| Current - IEC | 17.5A |
| Current - UL | 10 A |
| Voltage - IEC | 320 V |
| Voltage - UL | 300 V |
| Environment and package | |
| Insulation Height | 0.862" (21.89mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -50°C~120°C |
| Package | Bulk |
| Screw Size | - |
| Other | |
| Color | Orange |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.126" (3.20mm) |
| Features | - |
| Header Orientation | Vertical |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Weidmüller |
| Number of Levels | 2 |
| Number of Positions | 22 |
| Pitch | 0.150" (3.81mm) |
| Plug Wire Entry | - |
| Positions Per Level | 11 |
| Product Status | Active |
| Series | Omnimate SC |
| Termination Style | Solder |
| Torque - Screw | - |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Wire Strip Length | - |
