Cornell Dubilier / Illinois CapacitorUnited States

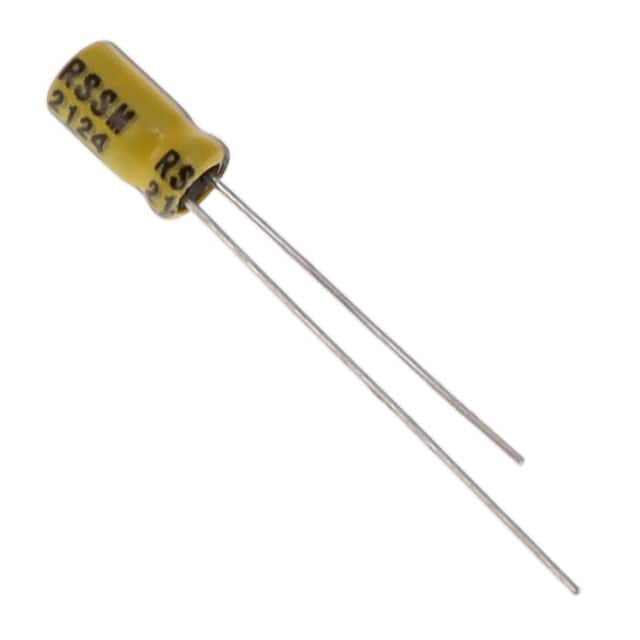

CAP ALUM 10UF 20% 16V RADIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance10 µF
Rated voltage16 V
Tolerance20 %
ESR28.18 ΩMax · 120Hz
Lifetime1 kh85°C
| Power | |
|---|---|
| Voltage - Rated | 16 V |
| AC and DC characteristics | |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Package / Case | Radial, Can |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Surface Mount Land Size | - |
| Other | |
| Applications | General Purpose |
| Capacitance | 10 µF |
| ESR (Equivalent Series Resistance) | 28.184Ohm @ 120Hz |
| Lead Spacing | 0.059" (1.50mm) |
| Mfr | Cornell Dubilier / Illinois Capacitor |
| Polarization | Polar |
| Product Status | Active |
| Ratings | - |
| Series | RSS |
| Tolerance | ±20% |
