Phoenix ContactGermany

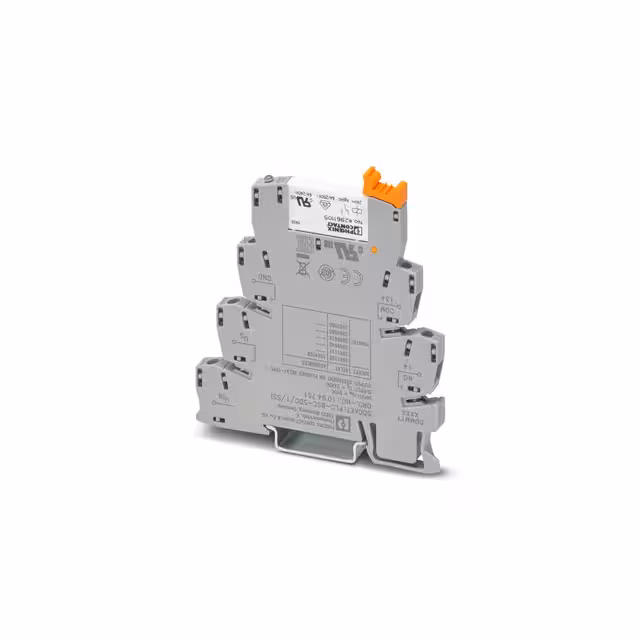

RELAY GEN PURPOSE SPST 6A 5V
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage5 V
Contact formSPST-NO
Contact current6 AMax
Switching voltage250 VMax
| Power | |
|---|---|
| Coil Current | 1 mA |
| Coil Voltage | 5VDC |
| Contact Rating (Current) | 6 A |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Switching Voltage | 250VAC, 250VDC - Max |
| Environment and package | |
| Mounting Type | DIN Rail |
| Operating Temperature | -25°C~60°C |
| Package | Bulk |
| Other | |
| Coil Insulation | - |
| Coil Resistance | 5 kOhms |
| Coil Type | Non Latching |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Features | Lighted Indicator, Socket Included |
| Mfr | Phoenix Contact |
| Operate Time | 5 ms |
| Product Status | Active |
| Relay Type | General Purpose |
| Release Time | 7 ms |
| Seal Rating | - |
| Series | - |
| Termination Style | Screw Terminal |
Documents
No documents are linked to this part yet.
