WeidmüllerGermany

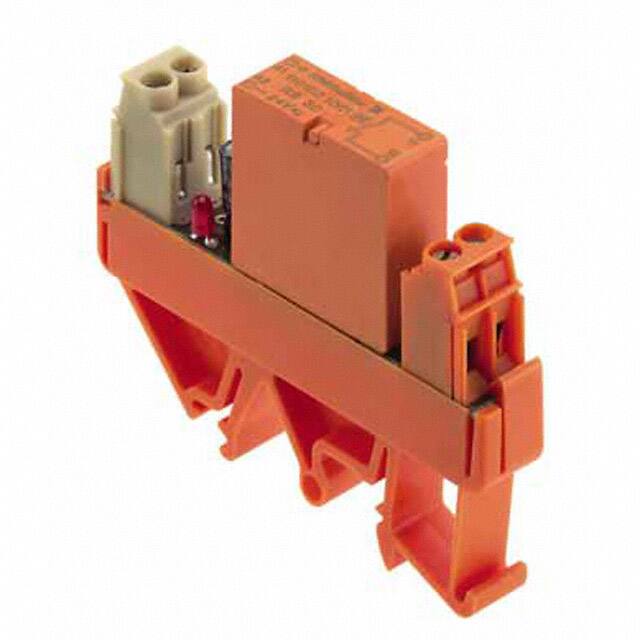

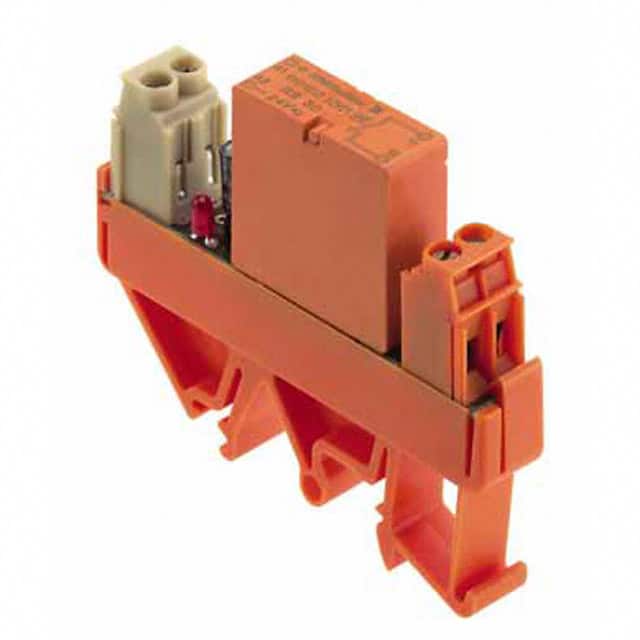

RELAY GEN PURPOSE SPST 3A 230V
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage230 V
Contact formSPST-NO
Contact current3 AMax
Switching voltage250 VMax
| Power | |
|---|---|
| Coil Current | 3.2 mA |
| Coil Voltage | 230VAC |
| Contact Rating (Current) | 3 A |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Switching Voltage | 250VAC - Max |
| Environment and package | |
| Mounting Type | DIN Rail |
| Operating Temperature | -25°C~40°C |
| Package | Bulk |
| Other | |
| Coil Insulation | - |
| Coil Type | Non Latching |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Features | Lighted Indicator, Socket Included |
| Mfr | Weidmüller |
| Operate Time | 10 ms |
| Product Status | Active |
| Relay Type | General Purpose |
| Release Time | 9 ms |
| Seal Rating | - |
| Series | RS |
| Termination Style | Screw Terminal |
