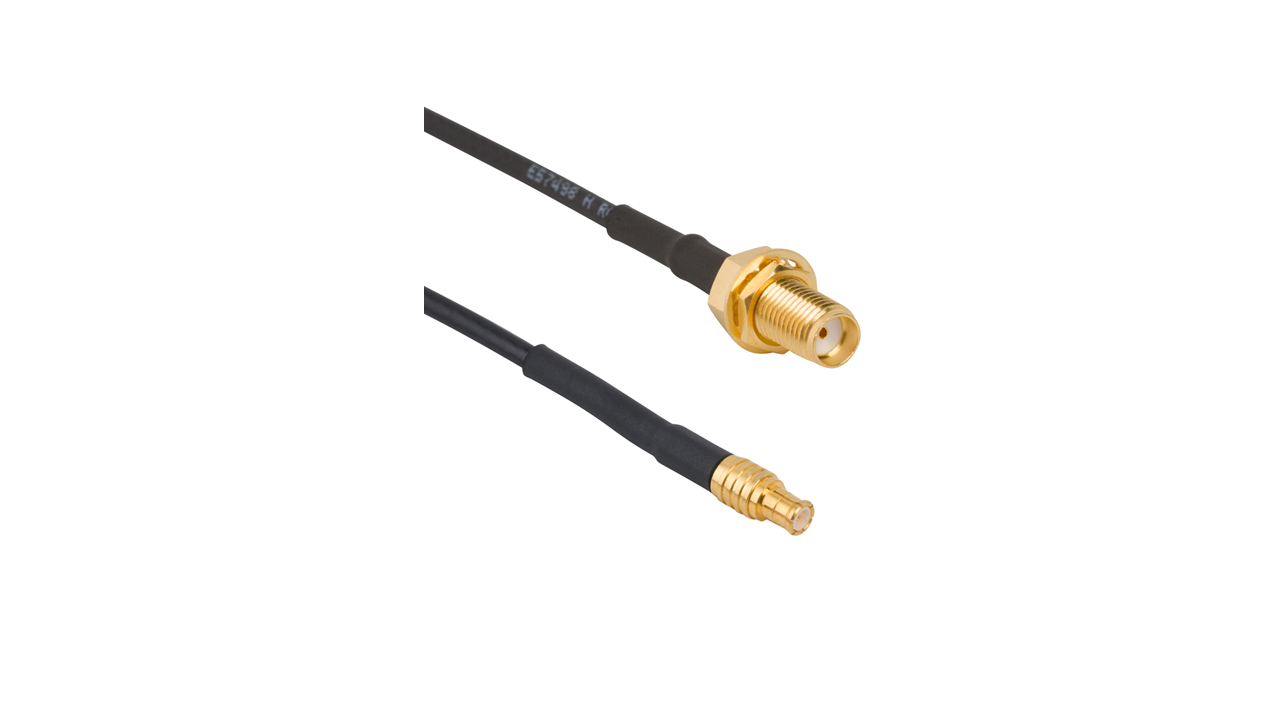

132176RP
AmphenolUnited States

132176RP

ActiveCoaxial Connector (RF) Assemblies

CONN RPSMA JACK STR 50OHM SOLDER

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Connector styleRP-SMA
GenderFemale
Impedance50 Ω
Max frequency12.4 GHzMax
Power
Voltage Rating375 V
AC and DC characteristics
Frequency - Max12.4 GHz
Impedance50Ohm
Environment and package
Mounting FeatureBulkhead - Front Side Nut
Mounting TypePanel Mount
Operating Temperature-65°C~165°C
PackageBulk
Other
Base Product Number132176
Body FinishGold
Body MaterialBrass
Cable GroupRG-316 Double Braid
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleRP-SMA
Connector TypeJack, Male Pin
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeThreaded
Features-
Housing ColorGold
Includes6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut
Ingress ProtectionWeatherproof
Insertion Loss-
Mating Cycles500
MfrAmphenol RF
Number of Ports1
Product StatusActive
Series-
Shield TerminationCrimp
