132178RP
AmphenolUnited States

132178RP

ActiveCoaxial Connector (RF) Assemblies

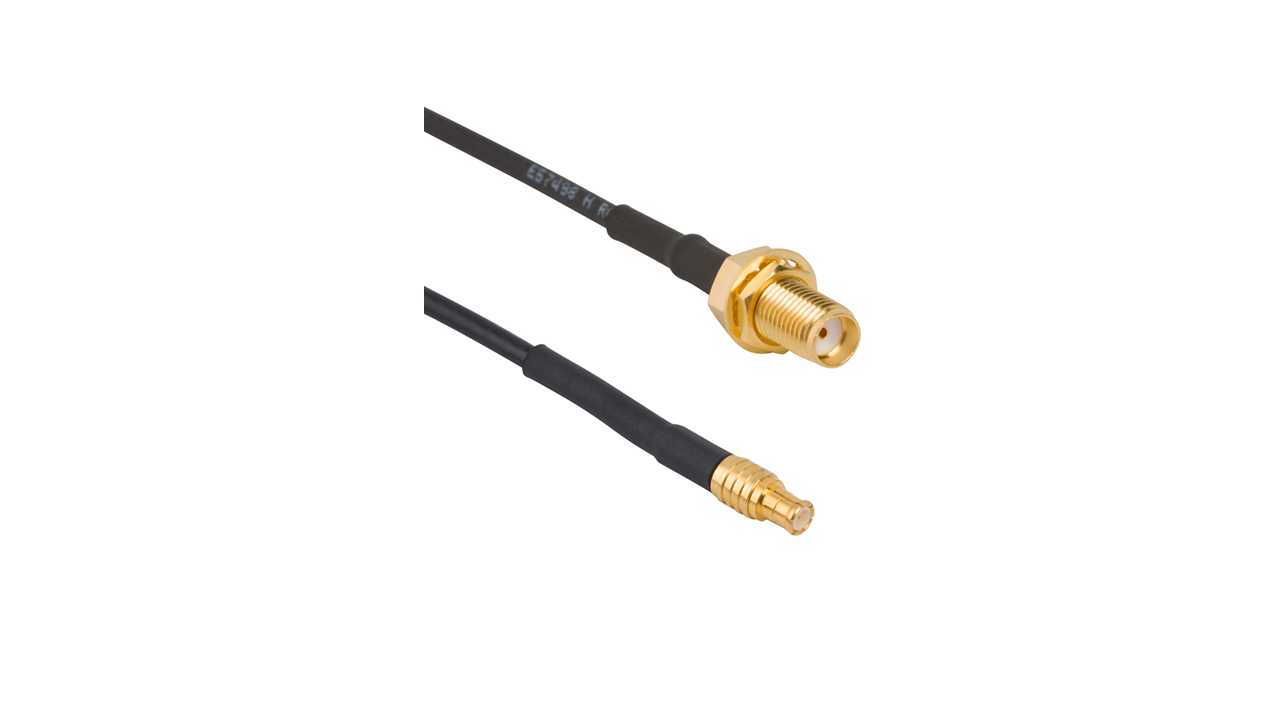

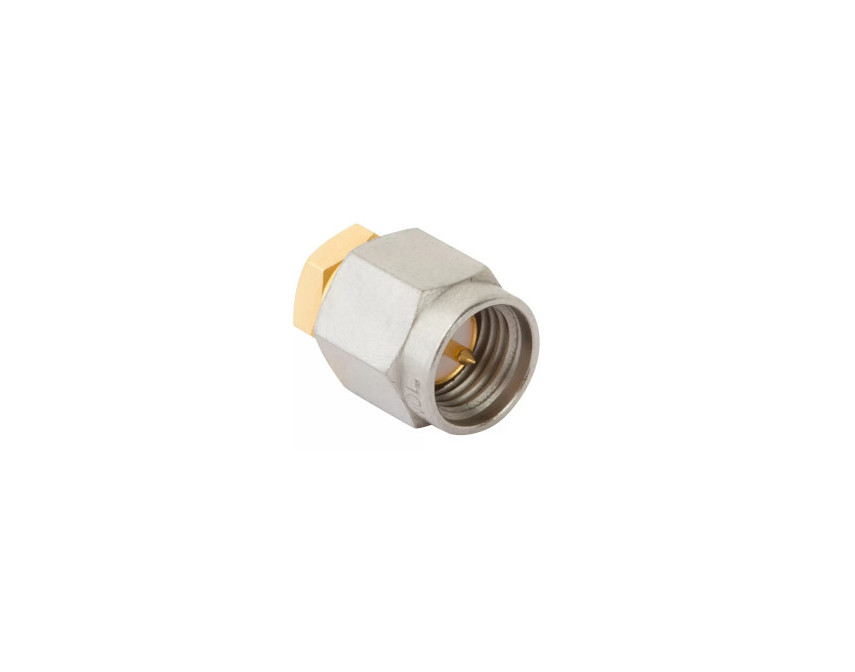

CONN RPSMA PLUG STR 50OHM SOLDER

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Connector styleRP-SMA
GenderFemale
Impedance50 Ω
Max frequency12.4 GHzMax
Power
Voltage Rating375 V
AC and DC characteristics
Frequency - Max12.4 GHz
Impedance50Ohm
Environment and package
Mounting Feature-
Mounting TypeFree Hanging (In-Line)
Operating Temperature-65°C~165°C
PackageBulk
Other
Base Product Number132178
Body FinishGold
Body MaterialBrass
Cable GroupRG-179, 188, 316 Double Braid, M17/152-RD316
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleRP-SMA
Connector TypePlug, Female Socket
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeThreaded
Features-
Housing ColorGold
Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink
Ingress ProtectionWeatherproof
Insertion Loss-
Mating Cycles500
MfrAmphenol RF
Number of Ports1
Product StatusActive
Series-
Shield TerminationCrimp
