AmphenolUnited States

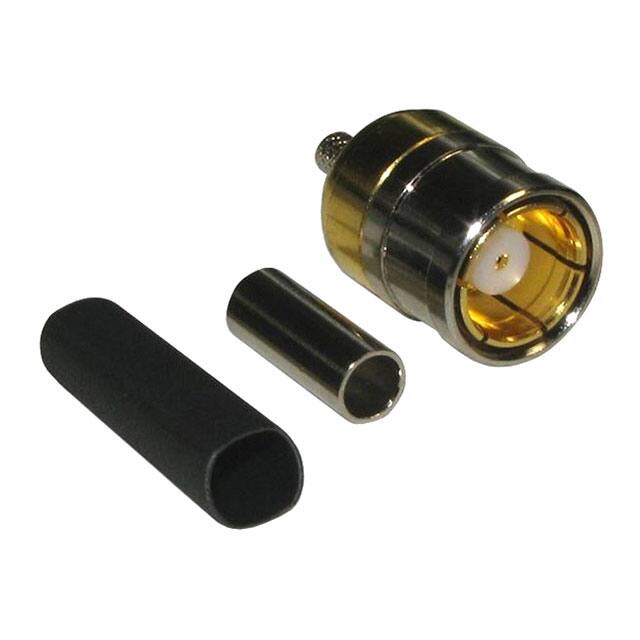

CONN SMZ PLUG STR 75 OHM SOLDER
All alternatives
View full reportTechnical parameters
Key specs
GenderFemale
Impedance75 Ω
Max frequency4 GHzMax
| Power | |
|---|---|
| Voltage Rating | 335 V |
| AC and DC characteristics | |
| Frequency - Max | 4 GHz |
| Impedance | 75Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -65°C~165°C |
| Package | Bag |
| Other | |
| Base Product Number | 1421 |
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMZ (Type 43) |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | - |
| Housing Color | Gold |
| Includes | 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink |
| Ingress Protection | - |
| Insertion Loss | 0.3dB |
| Mating Cycles | 500 |
| Mfr | Amphenol RF |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Crimp |
