AmphenolUnited States
CONN SMB RCPT STR 50 OHM SOLDER
All alternatives
View full reportTechnical parameters
Key specs
Connector styleSMB
GenderMale
Impedance50 Ω
Max frequency4 GHzMax
| Power | |
|---|---|
| Voltage Rating | 335 V |
| AC and DC characteristics | |
| Frequency - Max | 4 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Mounting Type | Panel Mount |
| Operating Temperature | -65°C~165°C |
| Package | Bag |
| Other | |
| Base Product Number | 1421 |
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | - |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Receptacle, Male Pin |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Extended Insulation |
| Housing Color | Gold |

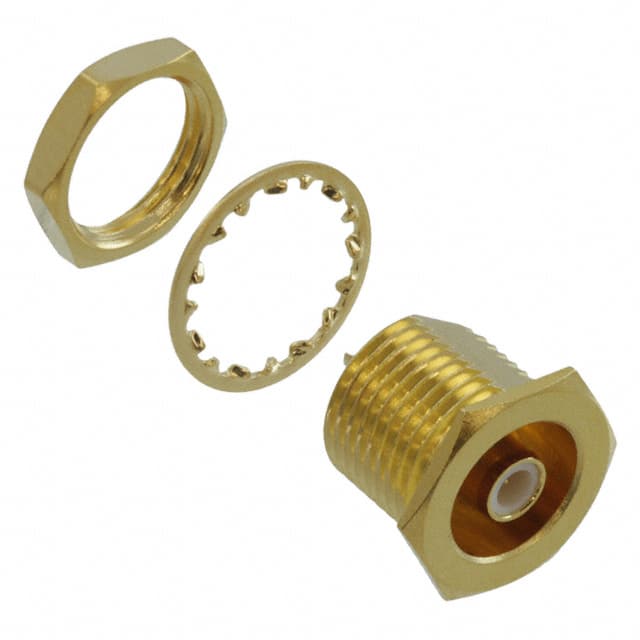

| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Ingress Protection | - |
| Insertion Loss | 0.3dB |
| Mating Cycles | 500 |
| Mfr | Amphenol RF |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Solder |
