Phoenix ContactGermany

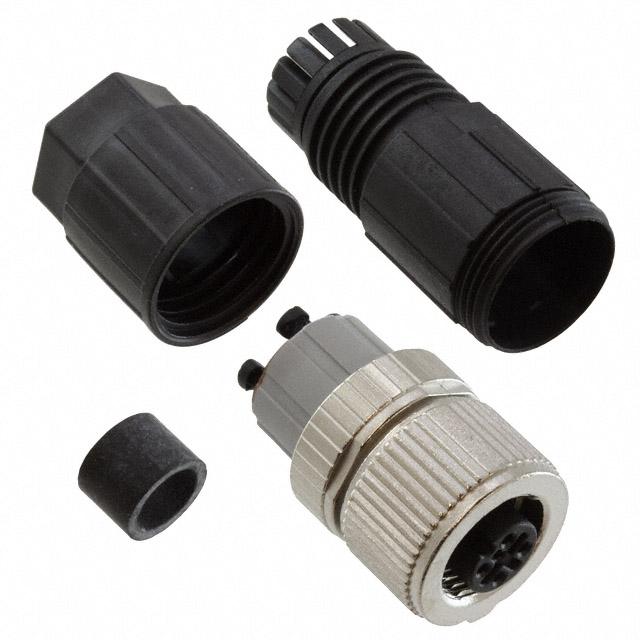

CONN RCPT FMALE 4P SPRING-CAGE
All alternatives
View full reportTechnical parameters
Key specs
Positions4
GenderFemale
Current rating4 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 4A |
| Voltage Rating | 250V |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -40°C ~ 85°C |
| Shell Size - Insert | M12-4 |
| Shell Size, MIL | - |
| Other | |
| Applications | - |
| Backshell Material, Plating | Polyamide (PA66), Nylon 6/6 |
| Cable Opening | 0.157" ~ 0.315" (4.00mm ~ 8.00mm) |
| Color | Black, Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Material | Copper Tin |
| Fastening Type | Push-Twist |
| Features | Backshell, Coupling Nut |
| Ingress Protection | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
| Insert Material | Thermoplastic Polyurethane (TPU) |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Phoenix Contact |
| Number of Positions | 4 |
| Orientation | A |
| Packaging | Bulk |
| Part Status | Obsolete |
| Primary Material | Metal |
| Series | SACC |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shielding | - |
| Termination | Spring-Cage |
