Phoenix ContactGermany

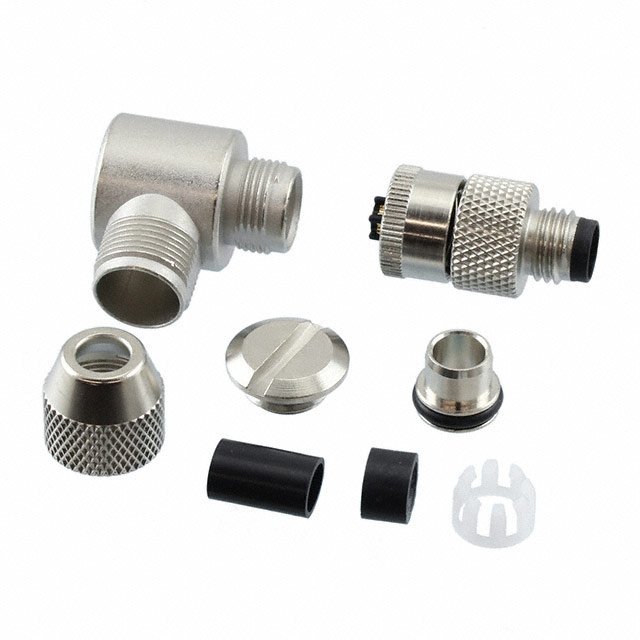

CONN PLUG MALE 4POS SOLDER CUP
All alternatives
View full reportTechnical parameters
Key specs
Positions4
GenderMale
Current rating4 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 4A |
| Voltage Rating | 30VAC/DC |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Operating Temperature | -40°C ~ 85°C |
| Shell Size - Insert | M8-4 |
| Shell Size, MIL | - |
| Other | |
| Applications | - |
| Backshell Material, Plating | Brass, Nickel |
| Cable Opening | 0.138" ~ 0.197" (3.50mm ~ 5.00mm) |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Material | Copper Zinc |
| Fastening Type | Threaded |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 HB |
| Mfr | Phoenix Contact |
| Number of Positions | 4 |
| Orientation | A |
| Packaging | Bulk |
| Part Status | Active |
| Primary Material | Metal |
| Series | SACC |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shielding | Shielded |
| Termination | Solder Cup |
