Vishay General Semiconductor - Diodes DivisionUnited States
DIODE GEN PURP 600V 15A TO263AB
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage600 V
Average rectified current15 A
Forward voltage3.2 VMax · 15 A
TypeStandardFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 15A |
| Current - Reverse Leakage @ Vr | 50 µA @ 600 V |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 3.2 V @ 15 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -65°C~175°C |
| Package | Tube |

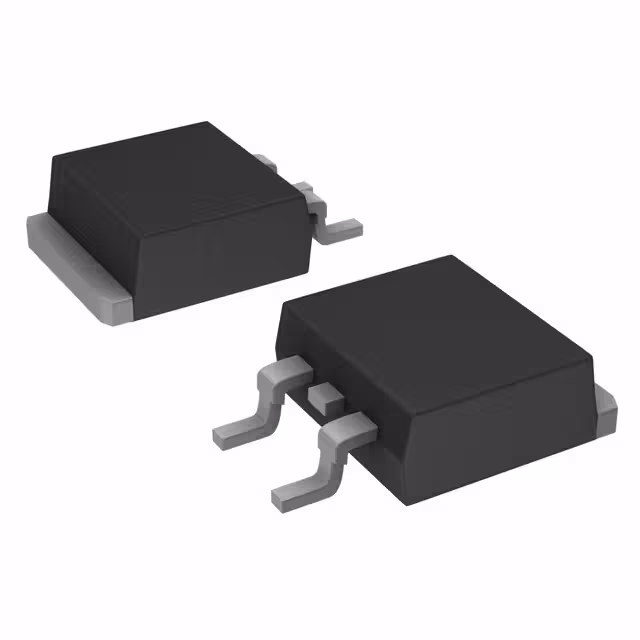

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263AB (D²PAK) |
| Other | |
| Base Product Number | 15ETX06 |
| Capacitance @ Vr, F | - |
| Diode Type | Standard |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Product Status | Obsolete |
| Reverse Recovery Time (trr) | 32 ns |
| Series | FRED Pt® |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
