Conxall/SwitchcraftUnited States

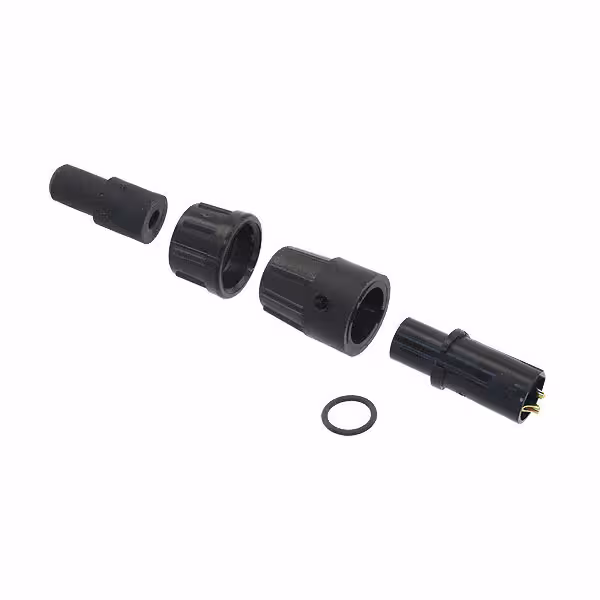

CONN PLUG MALE 2P GOLD SLDR CUP
All alternatives
View full reportTechnical parameters
Key specs
Positions2
GenderMale
Current rating7.5 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 600VAC/DC |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Other | |
| Applications | Data, Industrial, Instrumentation, Medical |
| Backshell Material, Plating | Thermoplastic |
| Base Product Number | 16282-2P |
| Cable Opening | 0.150" ~ 0.170" (3.81mm ~ 4.32mm) |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Material | Copper Alloy |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | - |
| Material Flammability Rating | UL94 HB |
| Mfr | Conxall/Switchcraft |
| Number of Positions | 2 |
| Orientation | Keyed |
| Primary Material | Plastic |
| Product Status | Active |
| Series | Micro-Con-X® |
| Shell Finish | - |
| Shell Material | Thermoplastic |
| Shielding | Unshielded |
| Termination | Solder Cup |
