Phoenix ContactGermany

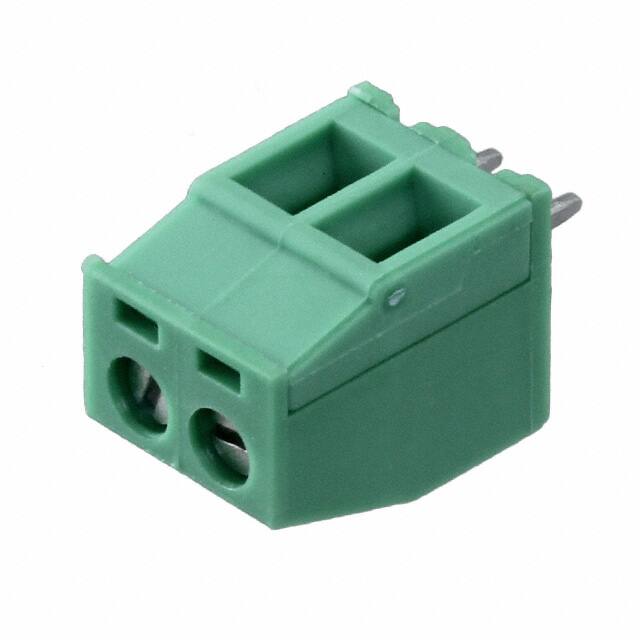

TERM BLK 2P SIDE ENT 3.81MM PCB
All alternatives
View full reportTechnical parameters
Key specs
Pitch3.81 mm
| Power | |
|---|---|
| Current | 10 A |
| Voltage | 300 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Clamp Material - Plating | - |
| Color | Green |
| Contact Material - Plating | - |
| Features | - |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Horizontal with Board |
| Mfr | Phoenix Contact |
| Number of Levels | 1 |
| Pitch | 0.150" (3.81mm) |
| Positions Per Level | 2 |
| Product Status | Obsolete |
| Screw Material - Plating | - |
| Screw Thread | M2 |
| Series | COMBICON EMKDS |
| Torque - Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
| Wire Gauge | 14-30 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
