B&K PrecisionUnited States

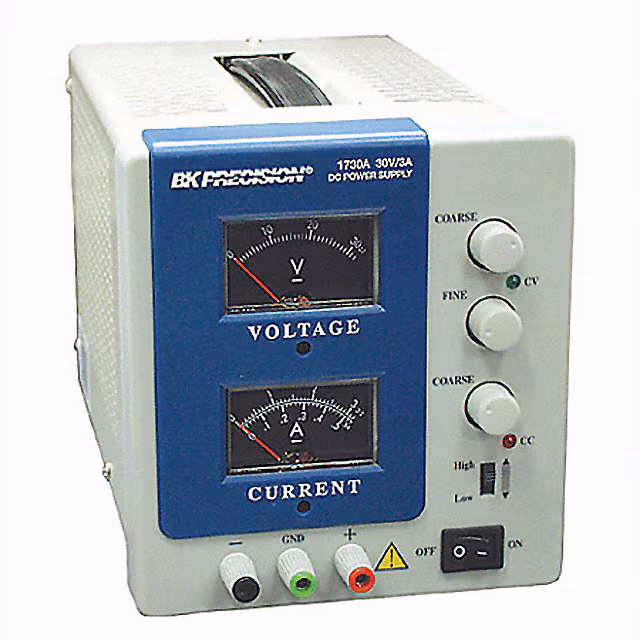

POWER SUPPLY 0-30VDC 0-3A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output | 0 ~ 3A |
| Power (Watts) | - |
| Voltage - Output | 0 ~ 30VDC |
| Voltage - Supply | 120VAC |
| AC and DC characteristics | |
| Accuracy - Voltmeter; Ammeter | 0.025 |
| Current Regulation - Line | 0.2% + 3mA |
| Current Regulation - Load | 0.2% + 3mA |
| Ripple | 1mV rms, 2mV p-p |
| Voltage Regulation - Line | 0.01% + 3mV |
| Voltage Regulation - Load | 0.01% + 3mV |
| Environment and package | |
| Package | Box |
| Size / Dimension | 12.500" L x 5.500" W x 6.200" H (317.50mm x 139.70mm x 157.48mm) |
| Other | |
| Display Type | Analog (2) |
| Features | Constant Current and Constant Voltage Indicators |
| Mfr | B&K Precision |
| Number of Characters | - |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | 1730 |
| Type | Bench (AC to DC) |
| Weight | 11 lbs (5 kg) |
