1735

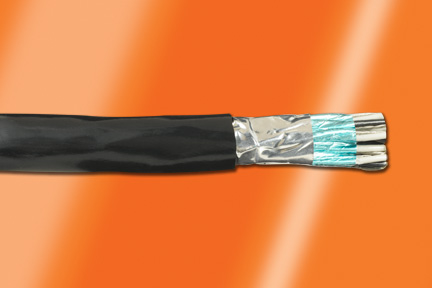

ActiveAlpha Wire 22 AWG, 1 Conductor Communication Cable provides precise signal transmission for computer and control applications
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 300 V RMS |
| Environment and package | |
| 1) Temperature Range | -20 to 80°C |
| Other | |
| 1 | BLACK |
| (1) Color Code | Alpha Wire Color Code D |
| 1) Component 1 | 1 x 1 COND |
| 2) Bend Radius | 10X Cable Diameter |
| 2) CE | EU Low Voltage Directive 2014/35/EU |
| 2) Ground Capacitance | 89 pF/ft @1 kHz, Nominal |
| 2) Shield | Bare Copper BRAID Shield,75% Coverage, Nom. |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more detail. |
| 3) Inductance | 0.044 μH/ft, Nominal |
| 3) Pull Tension | 7.5 lbs. (max.) |
| 4) Conductor DCR | 16.2 Ω/1000ft @20°C, Nominal |
| 5) OA Shield DCR | 9.2 Ω/1000ft @20°C, Nominal |
| a) 1000 FT | 10.5 x 5 x 3.5 Continuous Length |
| a) Color(s) | SLATE |
| AWM/STYLE 1108 | VW-1 |
| b) 500 FT | 6.5 x 6 x 1.9 Continuous Length |
| b) Print | ALPHA WIRE-* P/N 1735 RU AWM 1108 80C 300V VW-1 CE ROHS * = Factory Code |
| c) 100 FT | 6.5 x 2 x 1.9 Continuous Length |
| Color | BLACK |
| Cond | 1 |
| Electrical Properties | (For Engineering purposes only ) |
| Packaging | Flange x Traverse x Barrel (inches) |
