FIXED IND 10UH 3.45A 15 MOHM TH
All alternatives
View full reportTechnical parameters
Key specs
Inductance10 µH
Rated current3.45 AMax
DC resistance15 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 3.45 A |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | 19MHz |
| Inductance Frequency - Test | 500 kHz |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C~70°C |
| Package | Bulk |
| Package / Case | Axial |

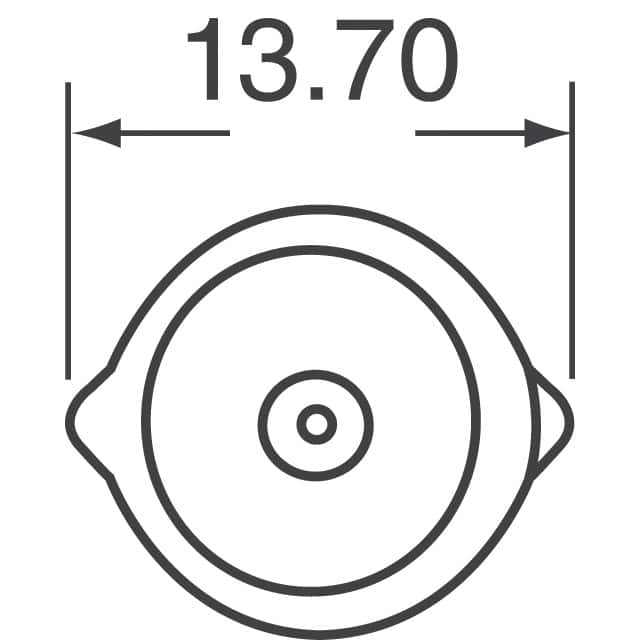

| Size / Dimension | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) |
| Supplier Device Package | - |
| Other | |
| Base Product Number | 18 |
| DC Resistance (DCR) | 15mOhm Max |
| Inductance | 10 µH |
| Material - Core | - |
| Mfr | Murata Power Solutions Inc. |
| Product Status | Obsolete |
| Q @ Freq | 64 @ 500kHz |
| Ratings | - |
| Series | 1800 |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Type | Wirewound |
