TRP Connector B.V.Netherlands

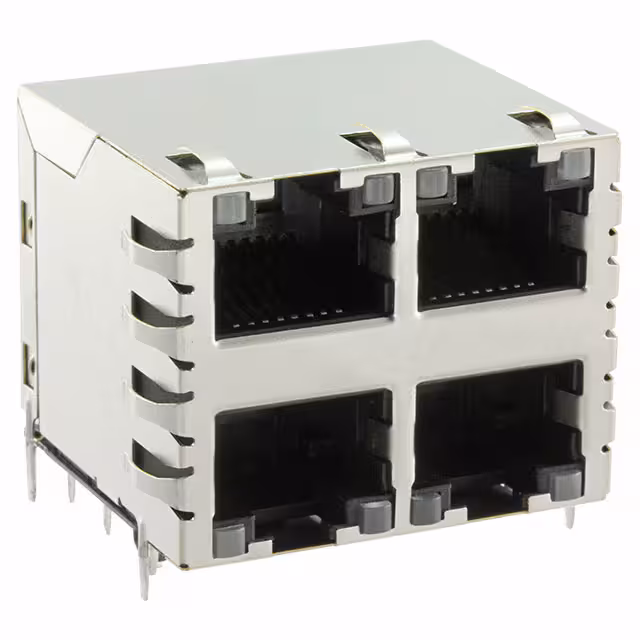

CONN JACK 4PORT 1000 BASE-T
All alternatives
View full reportTechnical parameters
Key specs
Rows2
| Environment and package | |
|---|---|
| Height Above Board | 0.992" (25.19mm) |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C~70°C |
| Package | Tray |
| Other | |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Material | Phosphor Bronze |
| Features | Board Guide, Decoupling Capacitance |
| Housing Material | Thermoplastic |
| LED Color | Green, Yellow - Green, Yellow |
| Mfr | TRP Connector B.V. |
| Number of Cores per Jack | 8 |
| Number of Ports | 4 |
| Number of Rows | 2 |
| Orientation | 90° Angle (Right) |
| Product Status | Obsolete |
| Series | Mag45 |
| Shielding | Shielded, EMI Finger |
| Shield Material | Brass |
| Tab Direction | Up and Down |
| Termination | Solder |
