WeidmüllerGermany

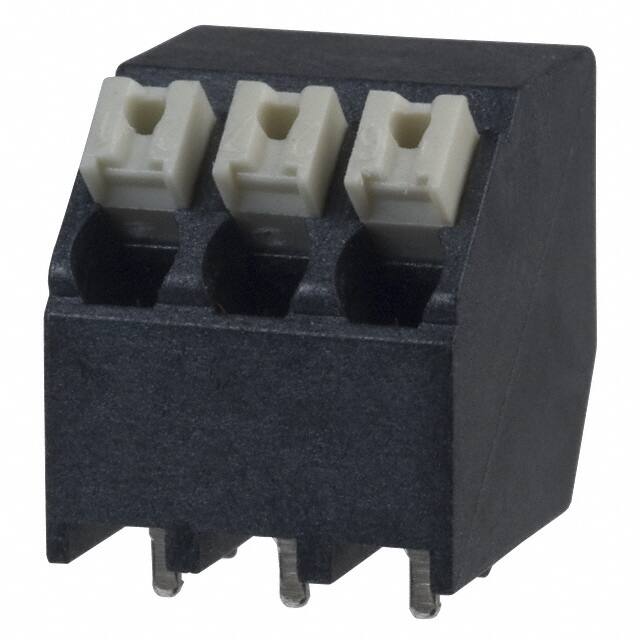

TERM BLOCK 3POS 45DEG 3.81MM PCB
All alternatives
View full reportTechnical parameters
Key specs
Pitch3.81 mm
| Power | |
|---|---|
| Current | 12 A |
| Voltage | 300 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -50°C~240°C |
| Package | Tube |
| Other | |
| Clamp Material - Plating | - |
| Color | Black |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Features | - |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Mating Orientation | 45° (135°) Angle with Board |
| Mfr | Weidmüller |
| Number of Levels | 1 |
| Pitch | 0.150" (3.81mm) |
| Positions Per Level | 3 |
| Product Status | Active |
| Screw Material - Plating | - |
| Screw Thread | - |
| Series | Omnimate LSF-SMT |
| Torque - Screw | - |
| Wire Gauge | 16-24 AWG |
| Wire Termination | Screwless - Push Button Clamp |
