Comair RotronUnited States

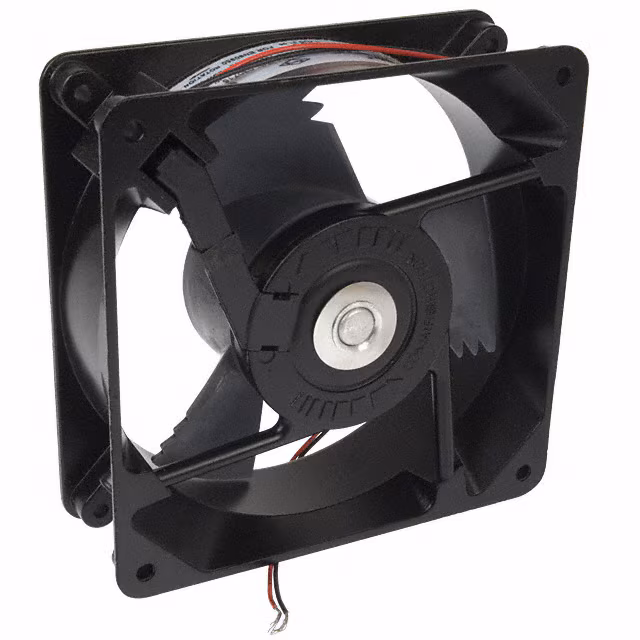

FAN AXIAL 119.1X39.1MM WD12M3
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.100A |
| Power (Watts) | 1.2 W |
| Voltage Range | 6 ~ 14VDC |
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Noise | 30.3dB(A) |
| Environment and package | |
| Lifetime @ Temp. | - |
| Operating Temperature | - |
| Size / Dimension | Square - 119.13mm L x 119.13mm H |
| Other | |
| Air Flow | 57.0 CFM (1.60m³/min) |
| Approval Agency | - |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Plastic |
| Material - Frame | Zinc |
| Mfr | Comair Rotron |
| Product Status | Active |
| RPM | 1675 RPM |
| Series | Whisper XL |
| Static Pressure | 0.087 in H2O (21.7 Pa) |
| Termination | 2 Wire Leads |
| Weight | 1.4 lbs (635.0 g) |
| Width | 39.10mm |
