Phoenix ContactGermany

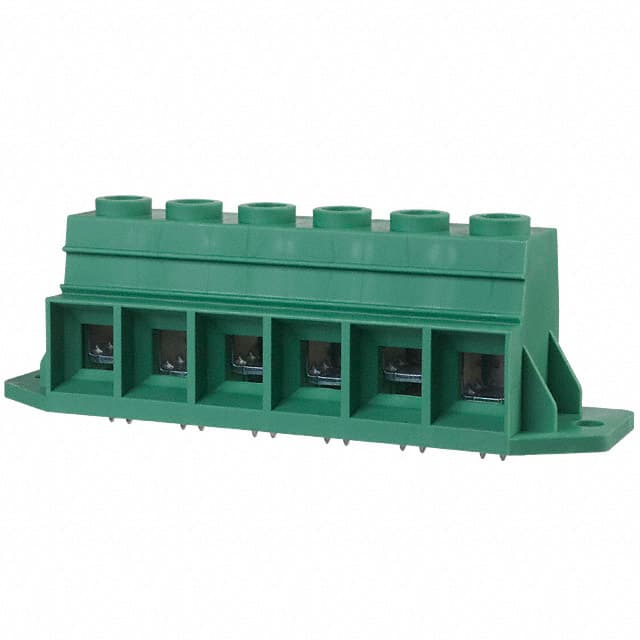

TERM BLK 6P SIDE ENTRY 15MM PCB
All alternatives
View full reportTechnical parameters
Key specs
Pitch15 mm
| Power | |
|---|---|
| Current | 115 A |
| Voltage | 600 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Clamp Material - Plating | - |
| Color | Green |
| Contact Material - Plating | - |
| Features | Flange (Mounting) |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Horizontal with Board |
| Mfr | Phoenix Contact |
| Number of Levels | 1 |
| Pitch | 0.591" (15.00mm) |
| Positions Per Level | 6 |
| Product Status | Active |
| Screw Material - Plating | - |
| Screw Thread | M5 |
| Series | COMBICON MKDSP |
| Torque - Screw | 2.5-4.5 Nm (22.1-39.8 Lb-In) |
| Wire Gauge | 2-20 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
