View full reportTechnical parameters
Key specs
Positions3
Pitch10.16 mm
| Power | |
|---|---|
| Current - IEC | 76A |
| Current - UL | 66 A |
| Voltage - IEC | 1 kV |
| Voltage - UL | 300 V |
| Environment and package | |
| Insulation Height | 0.528" (13.40mm) |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Screw Size | - |
| Other | |
| Color | Green |
| Contact Material | - |
| Contact Mating Finish | Silver |
| Contact Tail Length | 0.157" (4.00mm) |
| Features | Mating and Mounting Flange |
| Header Orientation | 90°, Right Angle |
| Housing Material | Polyamide (PA), Nylon |
| Ingress Protection | - |
| Manufacturer | Phoenix Contact |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Packaging | Bulk |
| Part Status | Active |
| Pitch | 0.400" (10.16mm) |
| Plug Wire Entry | - |
| Positions Per Level | 3 |
| Series | COMBICON PC |
| Termination Style | Solder |
| Torque - Screw | - |

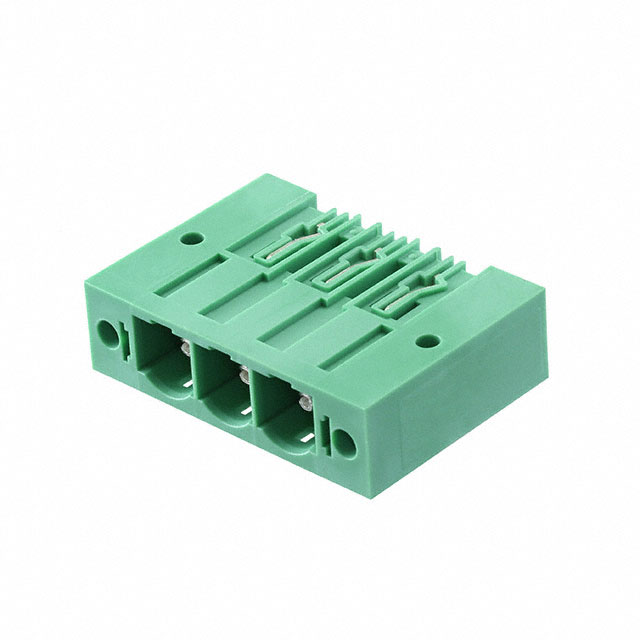

| Type | Header, Male Pins, Shrouded (4 Side) |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Wire Strip Length | - |
