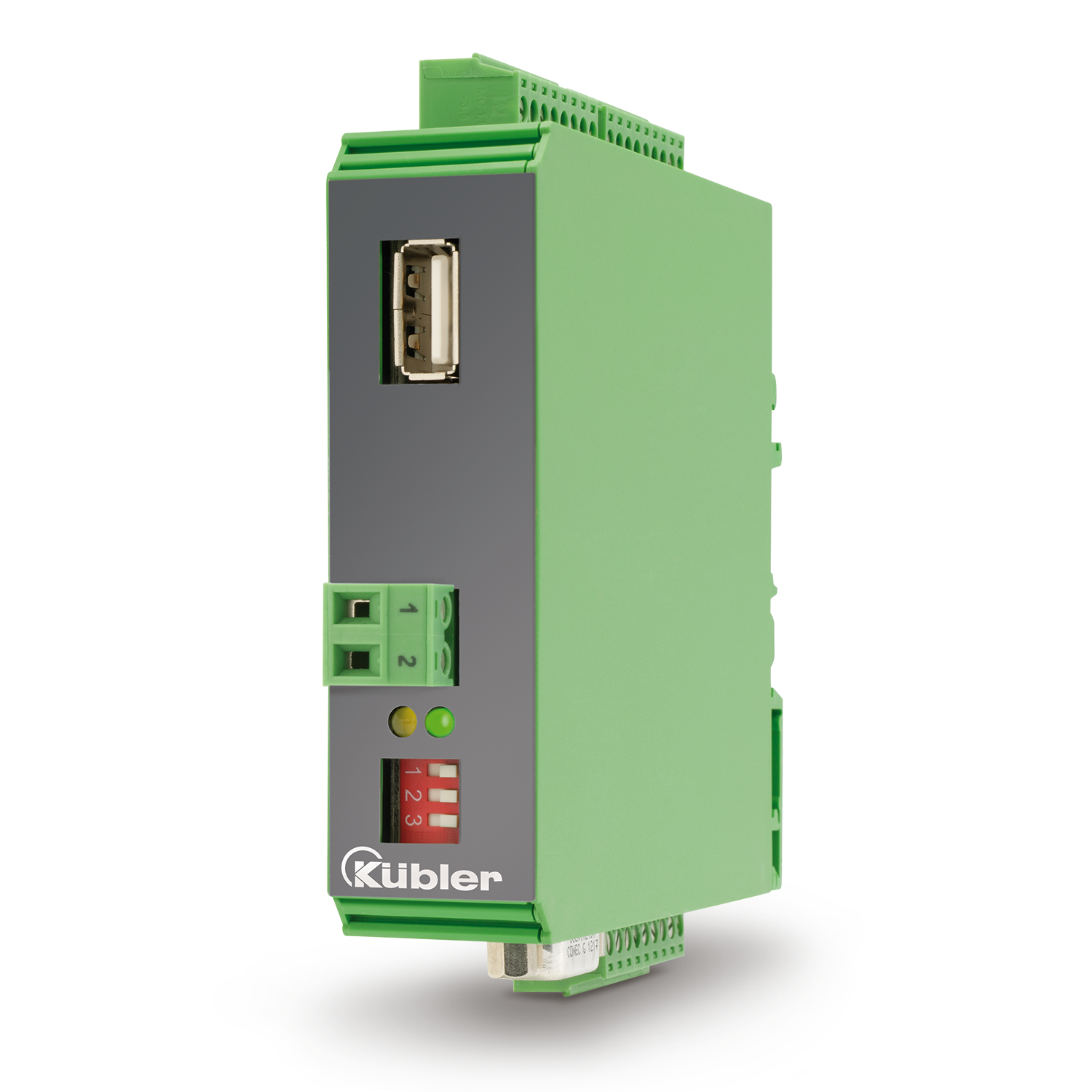

1A-1S1D2RS

Active

Universal signal converter for analog input signals. Analog to digital (RS422 / TTL, RS485, SSI, push-pull / HTL)

All alternatives

Power
Power supply	12...30 V DC
Environment and package
Dimension	22 mm x 102 mm x 102 mm
Working temperature	0 °C ... 45 °C
Other
Connection types	Screw terminals Sub-D connector
Input interfaces	Analog ±10 V Analog 0...10 V Analog 0...20 mA Analog 4–20 mA
Inputs coding	I+, I-, V+, V-, 0, AGND, Ref I+, I-, V+, V-, 0, AGND, Ref I+, I-, V+, V-, 0, AGND, Ref I+, I-, V+, V-, 0, AGND, Ref
OS10 - Standard software PDF ∼ 5,4 MB \| 09.2025	DE EN
Output interfaces	HTL RS232 RS485 TTL / RS422 SSI, binär SSI, gray
Outputs coding	A, A\|, B, B\|, 0, 0\| RxD, TxD, 0 R+, R-, T+, T-, 0 D+, D-, Clk+, Clk-, 0 D+, D-, Clk+, Clk-, 0 A, A\|, B, B\|, 0, 0\|
Protection level	IP20
SK 1A-1S1D2RS PDF ∼ 4,9 MB \| 09.2025	DE EN FR
SK 1A-1S1D2RS PDF ∼ 771,7 KB \| 09.2025	DE EN FR
