Micro Commercial CoUnited States

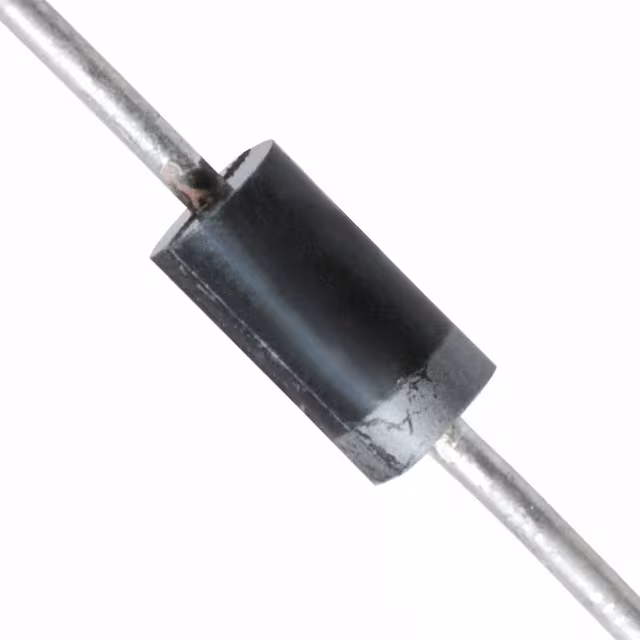

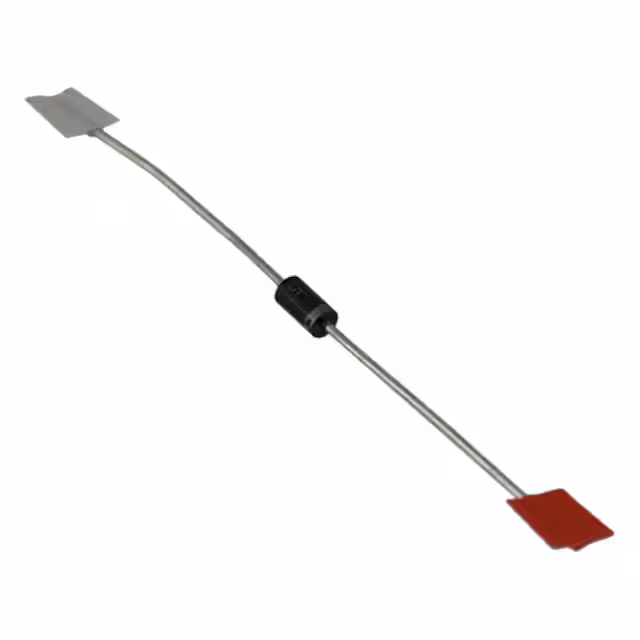

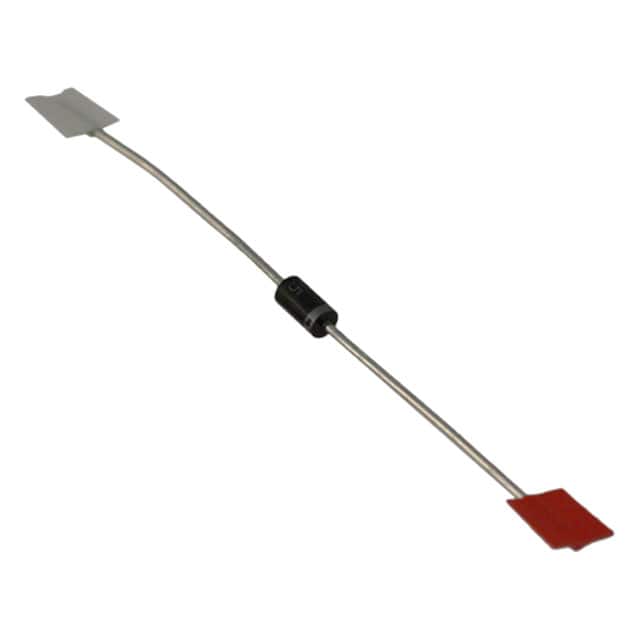

DIODE GEN PURP 400V 1A DO41
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage400 V
Average rectified current1 A
Forward voltage1.1 VMax · 1 A
TypeStandardStandard Recovery >500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 1A |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -55°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 |
| Other | |
| Base Product Number | 1N4004 |
| Capacitance @ Vr, F | - |
| Diode Type | Standard |
| Mfr | Micro Commercial Co |
| Product Status | Obsolete |
| Reverse Recovery Time (trr) | 2 µs |
| Series | - |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
